Mercury
>>
2006
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Flex Plate
Flex Plate

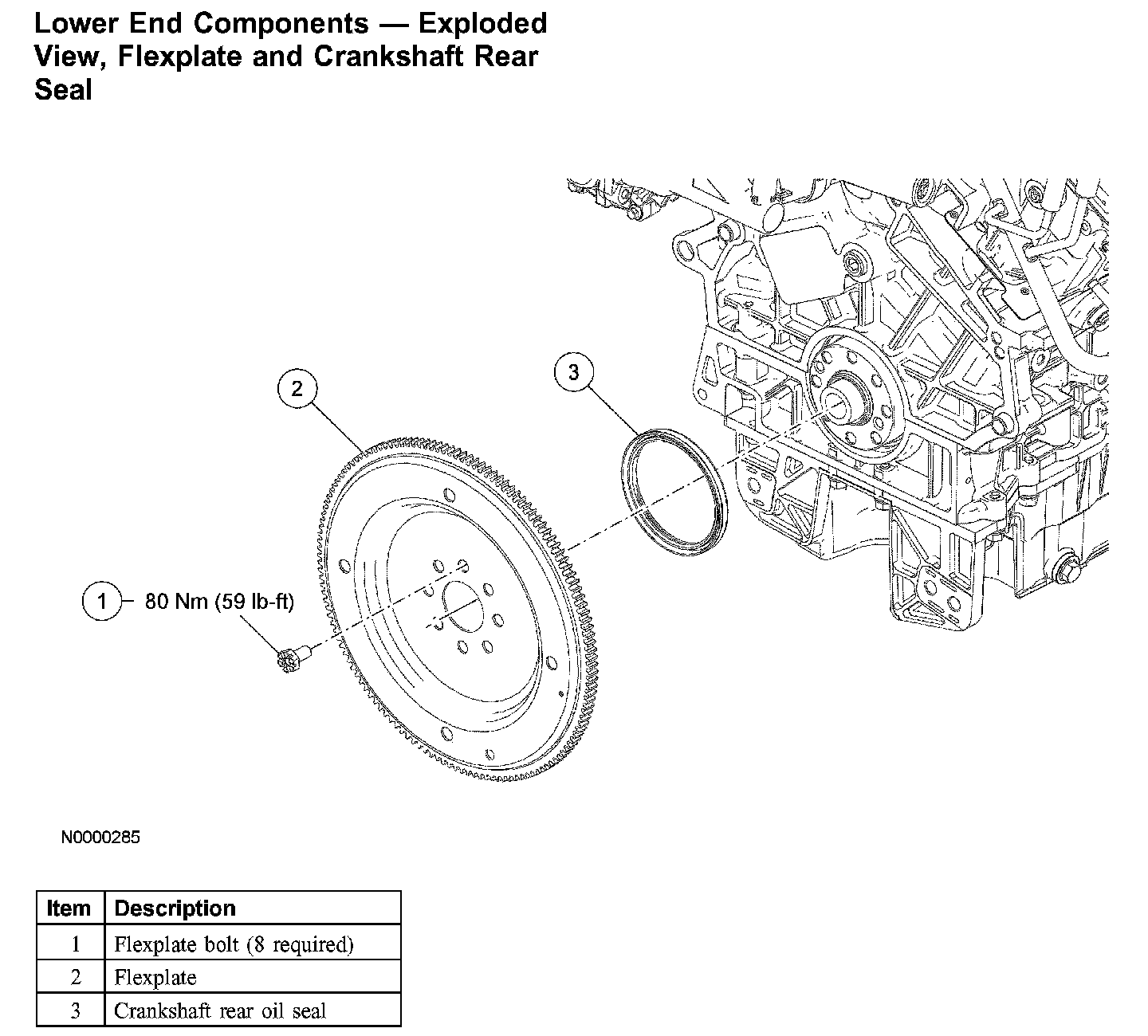

Lower End Components - Exploded View, Flexplate and Crankshaft Rear Seal:
