Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Occupant Sensor
>>
Occupant Classification Sensor (OCS)
Occupant Classification Sensor (OCS)

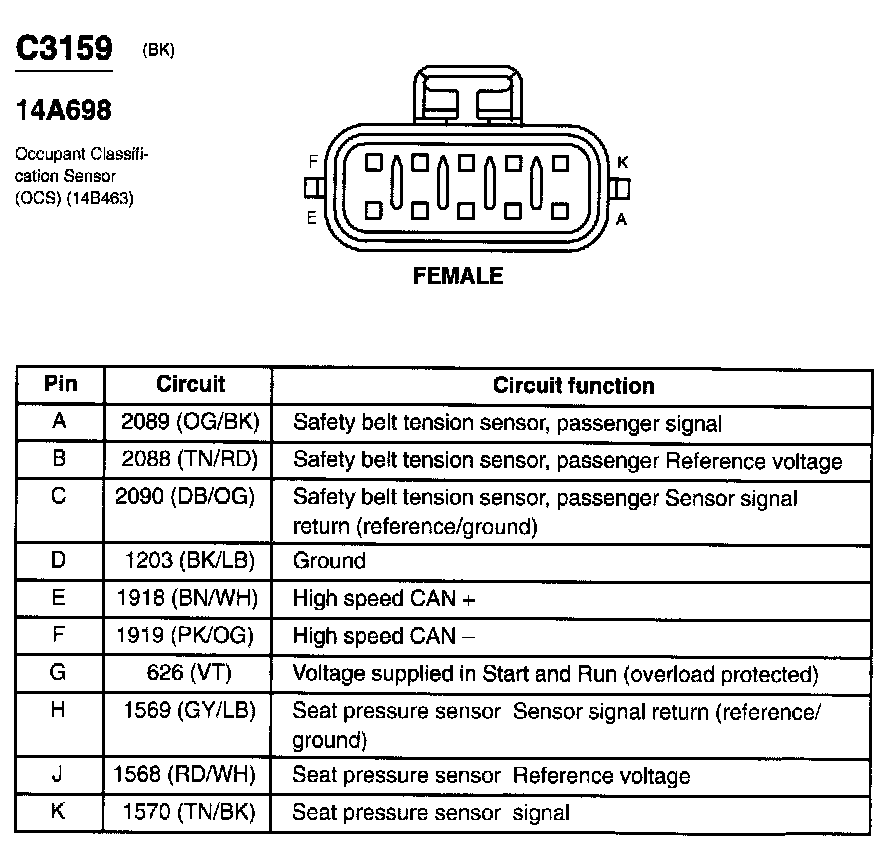

C3159:
C3285:
