Air Register: Service and Repair

REGISTER - DRIVER SIDE AND CENTER

Removal and Installation
1. Remove the instrument cluster finish panel.

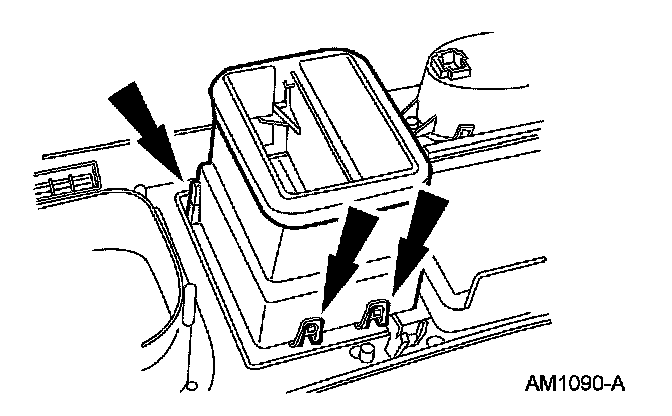

2. Disengage the tabs and remove the register.
3. To install, reverse the removal procedure.

REGISTER - PASSENGER SIDE

Removal and Installation
1. Remove the passenger airbag module.

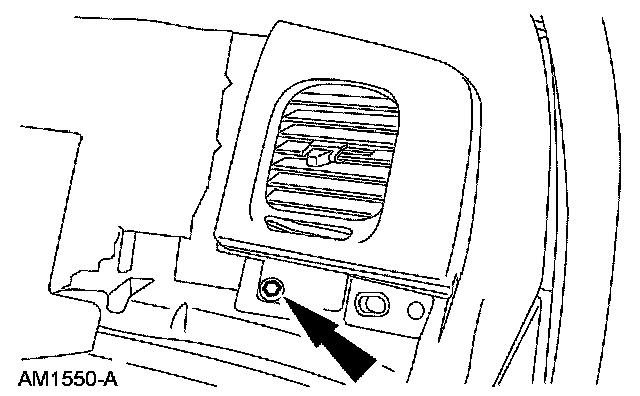

2. Remove the screw and the passenger side register.
3. To install, reverse the removal procedure.
