Home >> Mercury >> 2004 >> Sable V6-3.0L VIN 2 Flex Fuel >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 87

Diagram Set 87

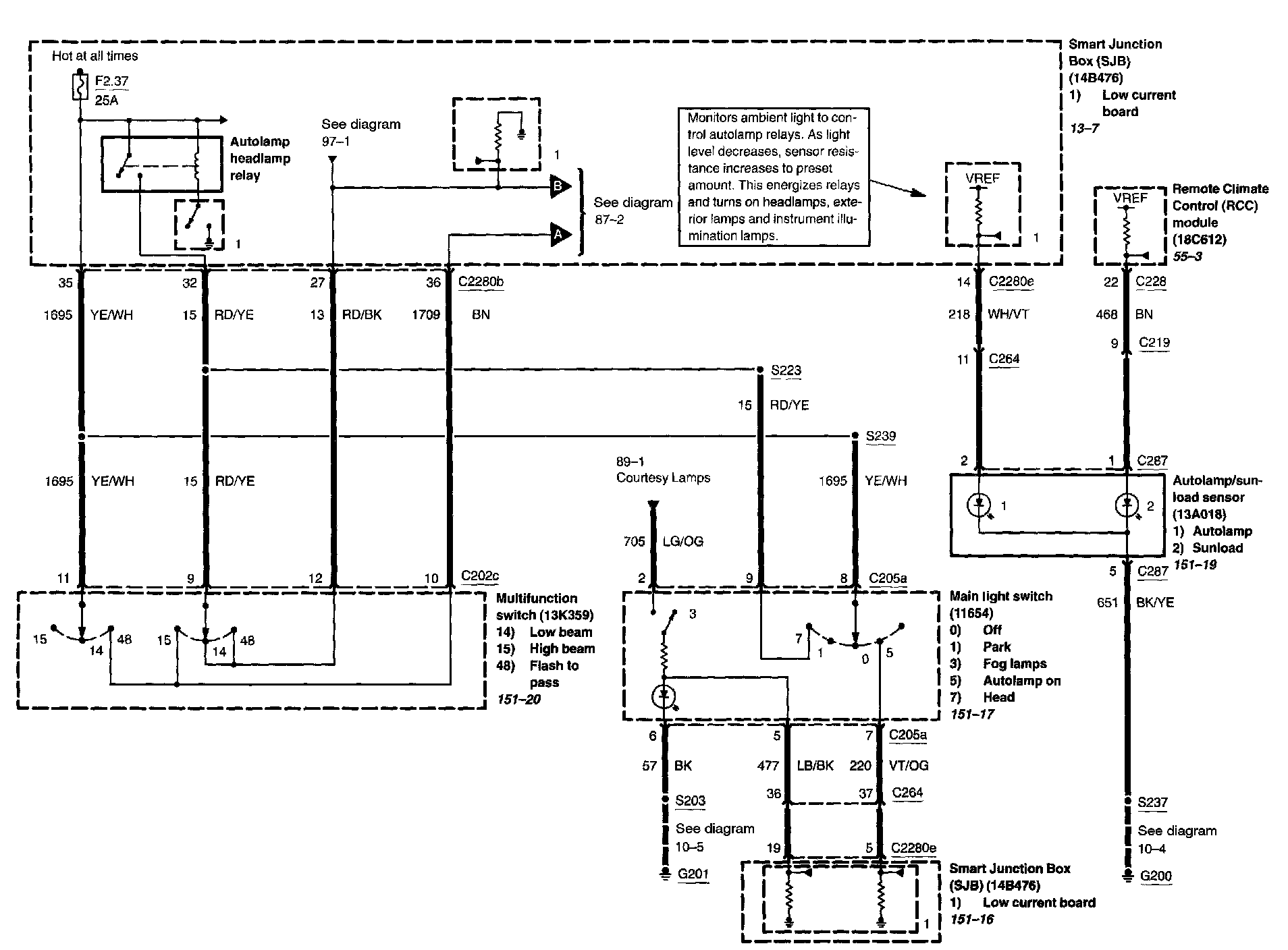

87-1:

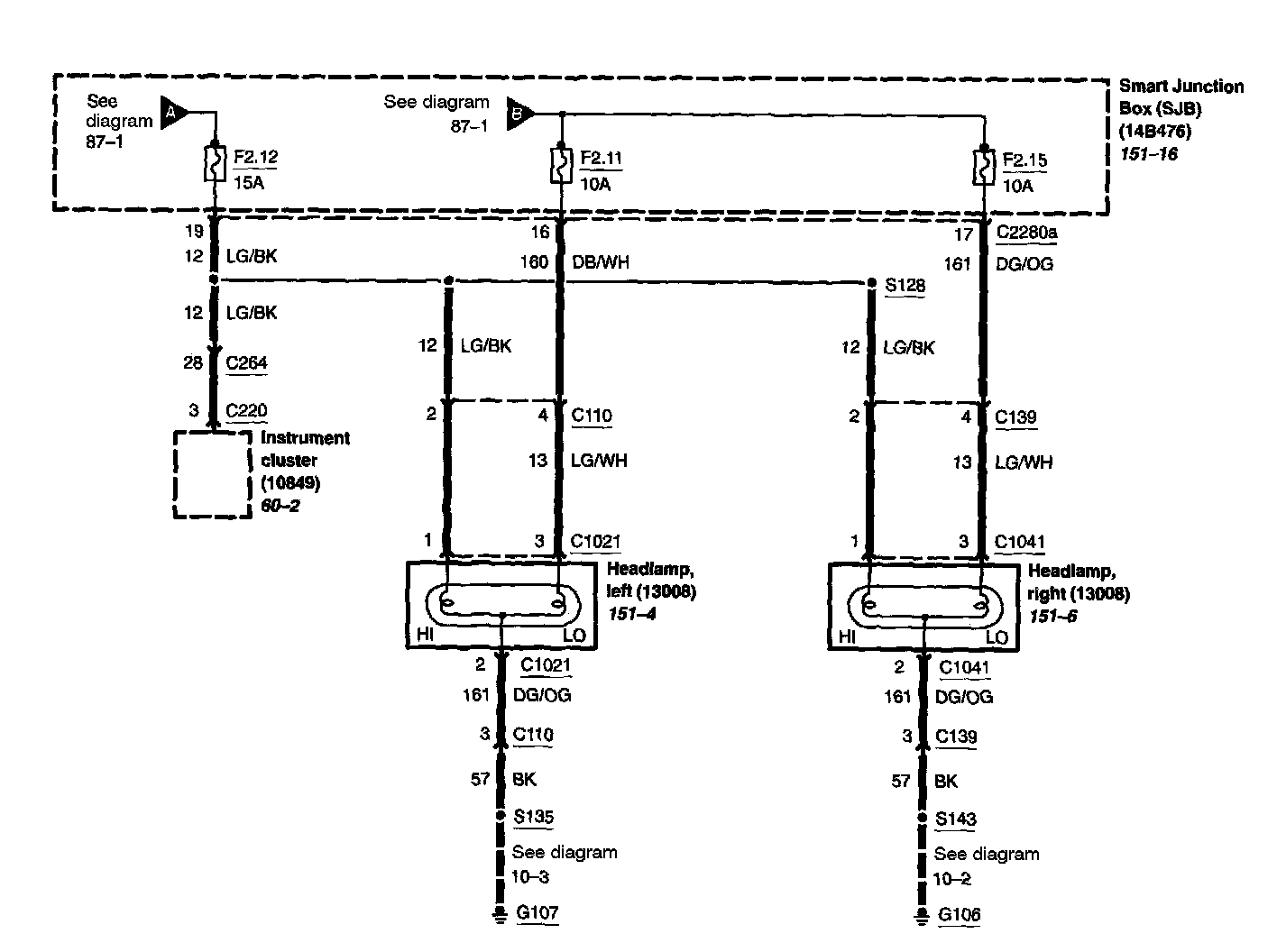

87-2:
