Mercury
>>
2004
>>
Sable V6-3.0L VIN 2 Flex Fuel
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>

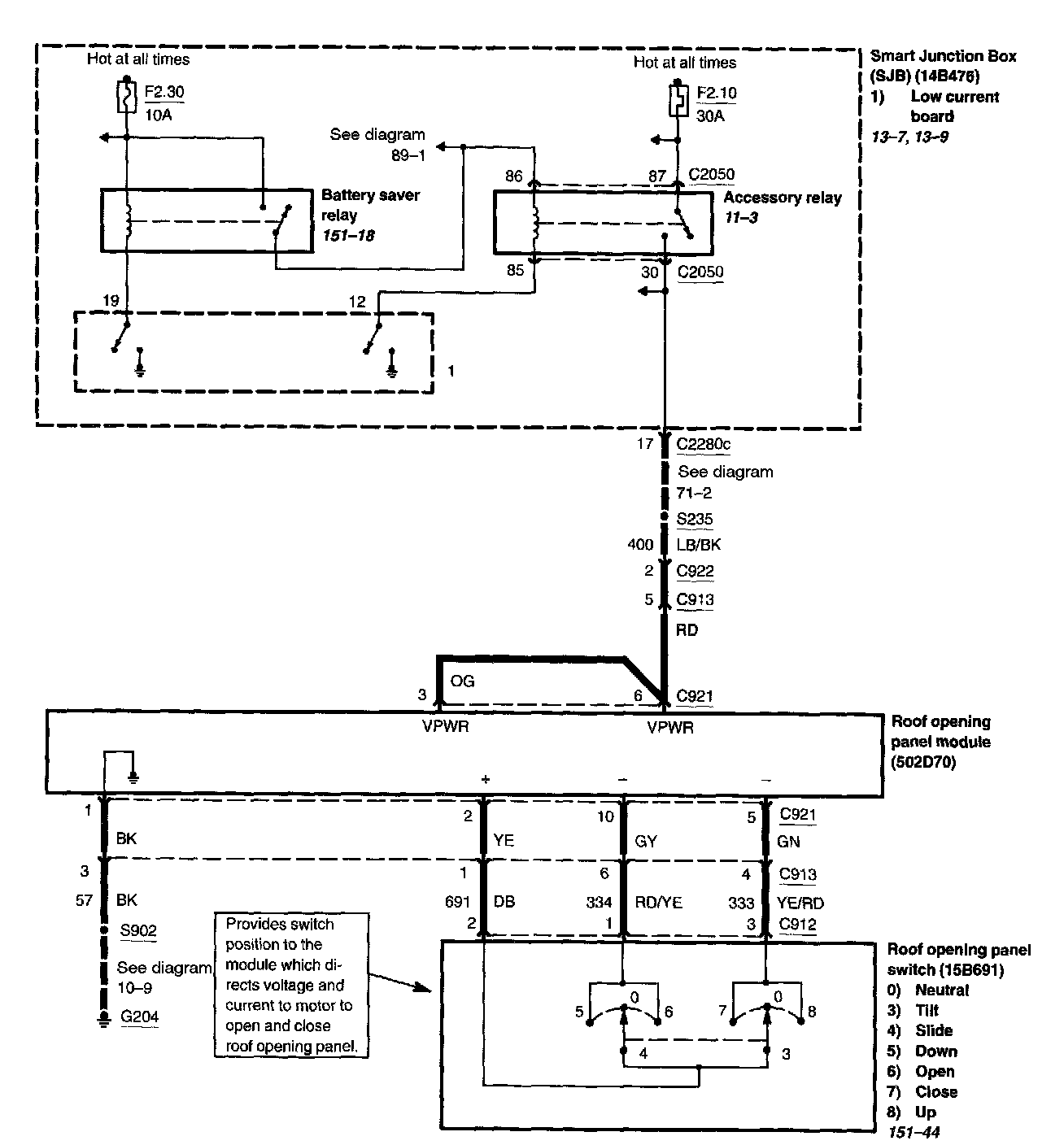

Diagram Set 101
Diagram Set 101
101-1:
