Differential Assembly: Diagrams

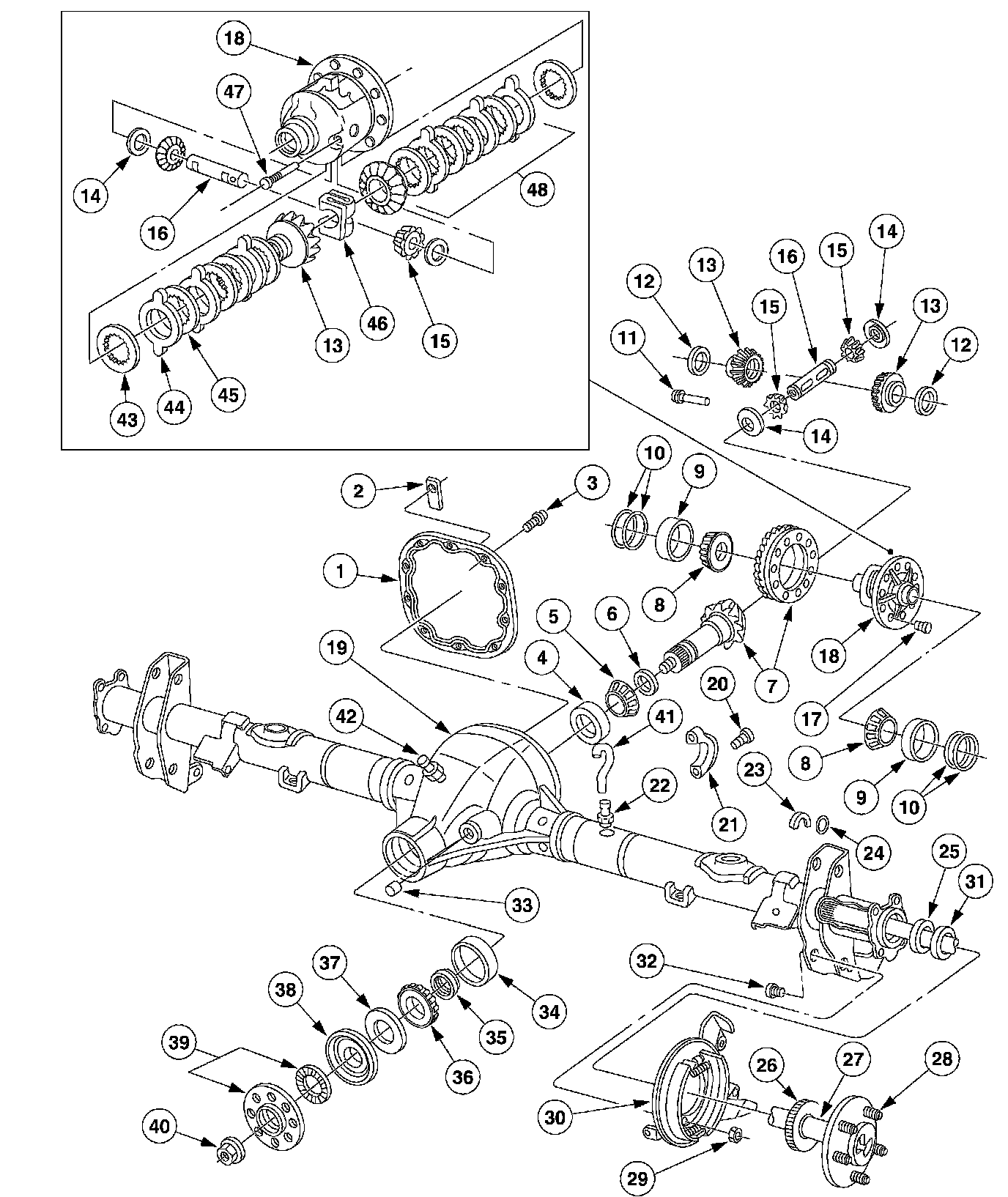

Rear Drive Axle and Differential

Part 1 Of 3:

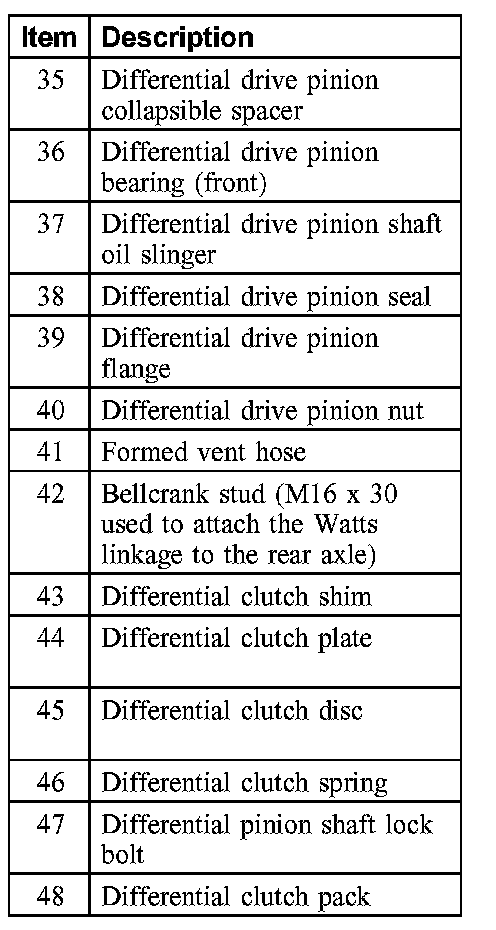

Part 2 Of 3:




Part 3 Of 3:





8.8-Inch Axle
