Home >> Mercury >> 2004 >> Marauder V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test H

Test H

PINPOINT TEST H: DTC B1566: DOOR AJAR-SHORT TO GROUND

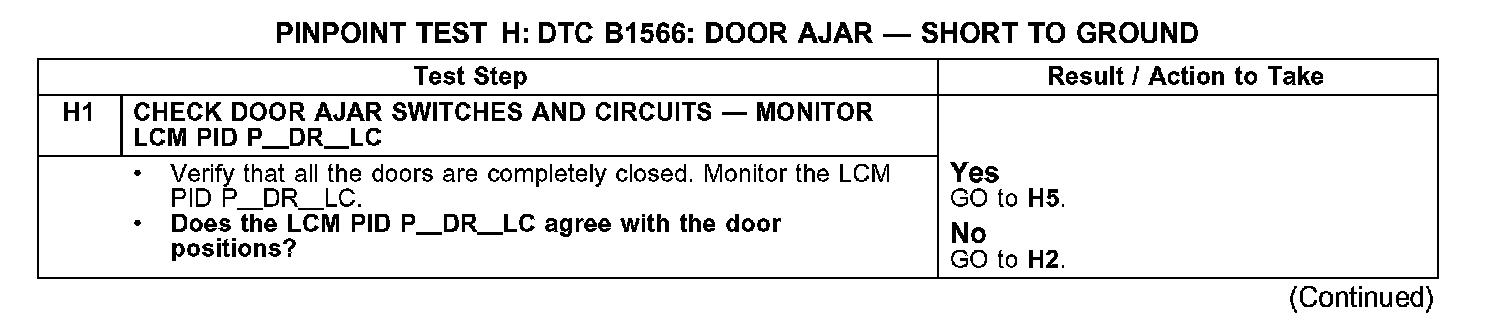

Test H1:

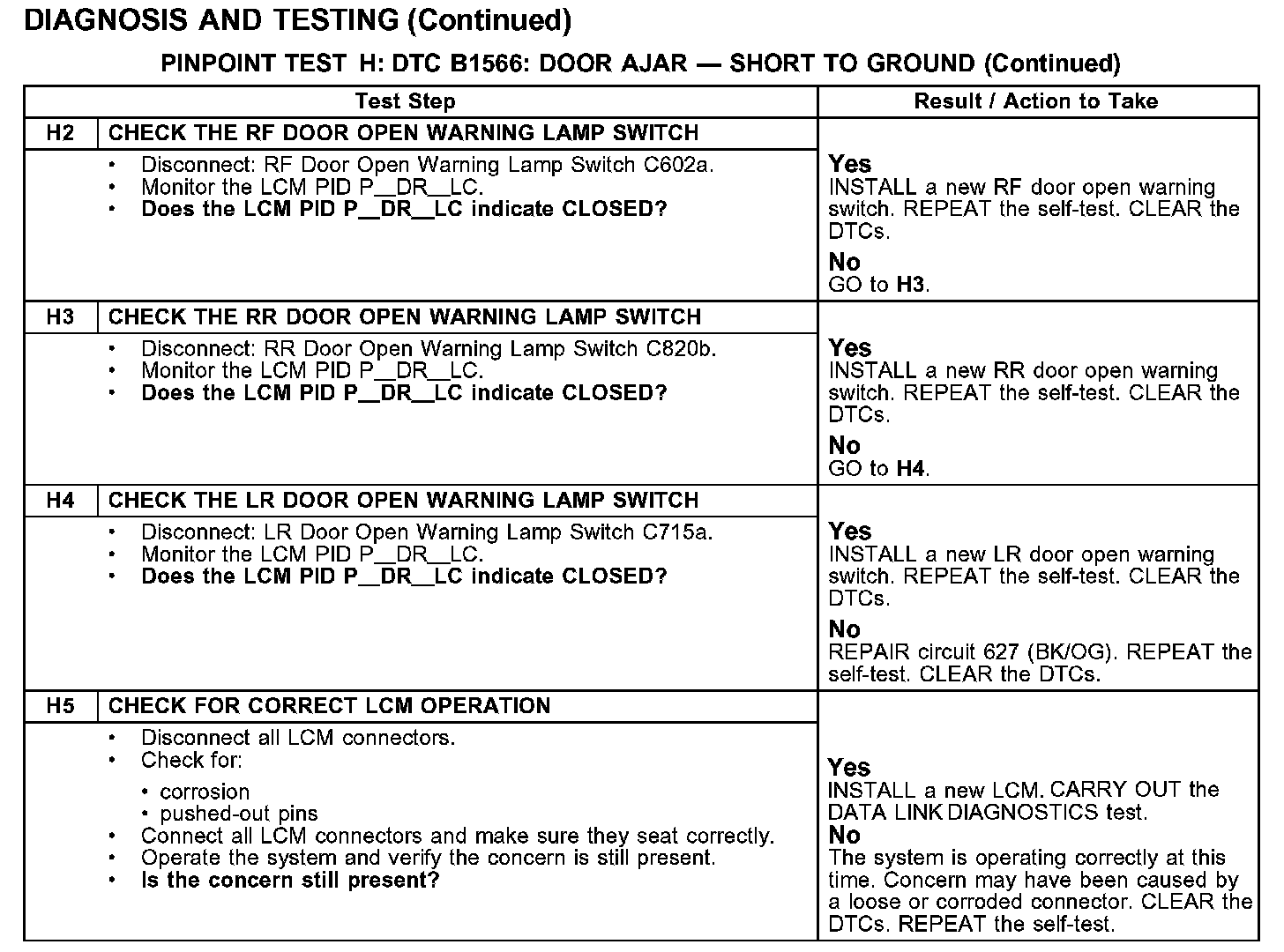

Test H2-H5:
