Transmission Mount: Service and Repair

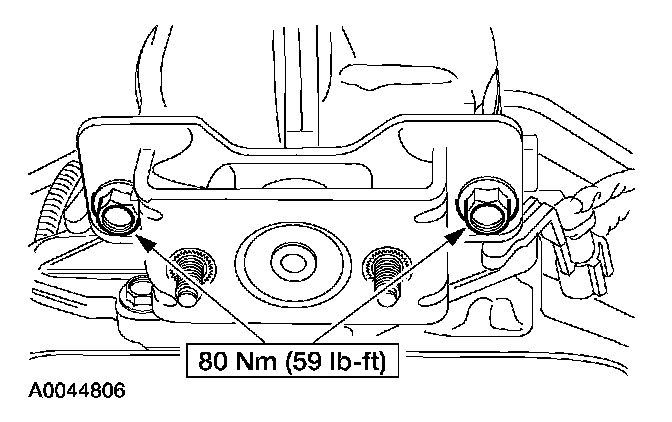

Transmission Insulator and Retainer

Removal

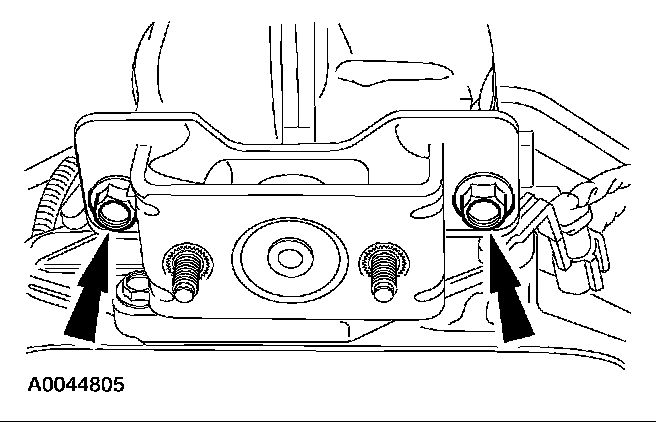

1. Remove the transmission support crossmember.





2. Remove the transmission support insulator.





3. To install, reverse the removal procedure.
