Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercury
>>
2003
>>
Sable V6-3.0L DOHC VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>
AX4S Automatic Transaxle
>>

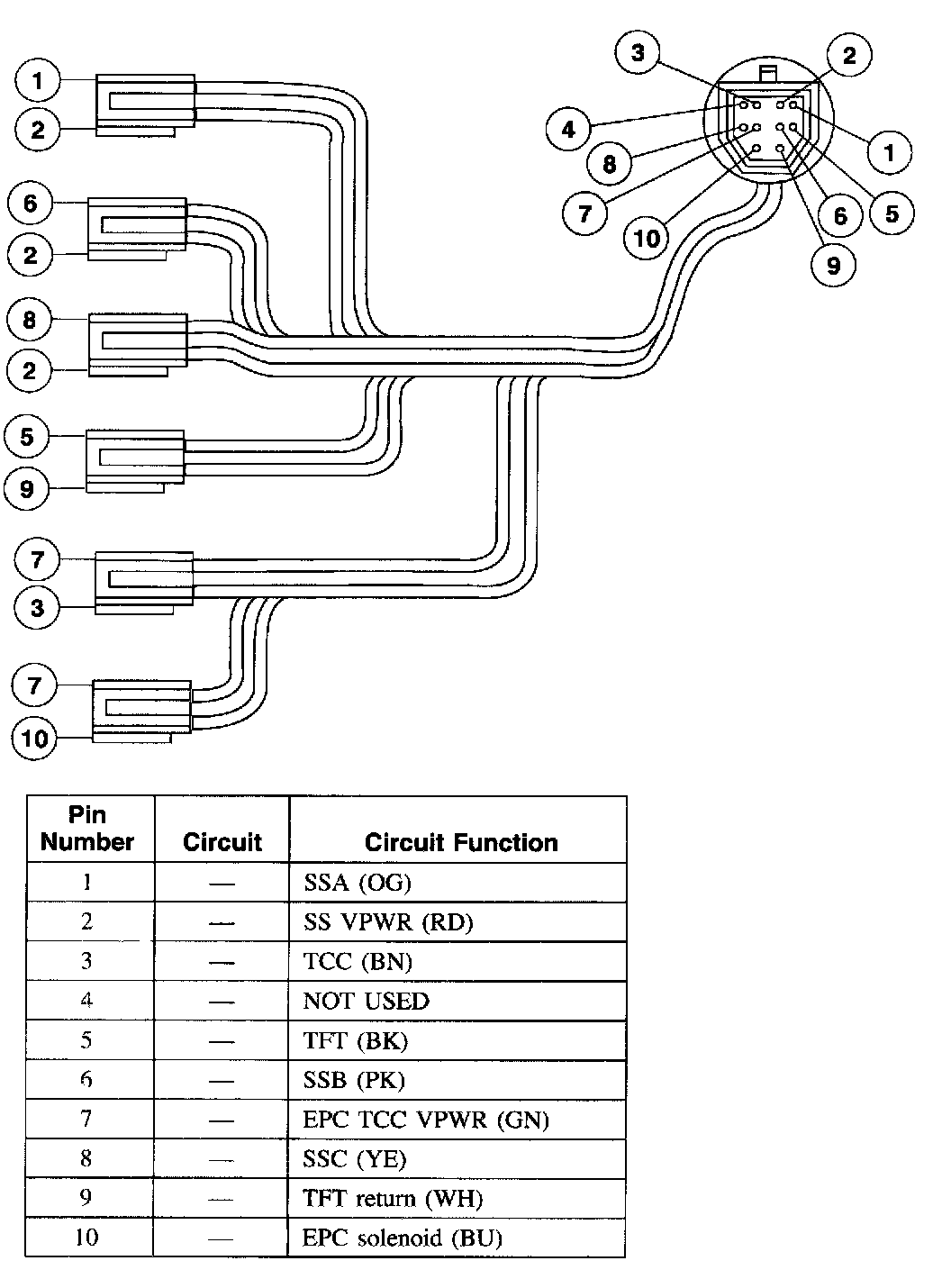

Transaxle Internal Harness Connector
Transaxle Internal Harness Connector
Transaxle Internal Harness Connector
Part 1 Of 2:
