Home >> Mercury >> 2003 >> Marauder V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Diagrams

Differential Assembly: Diagrams

Rear Drive Axle and Differential

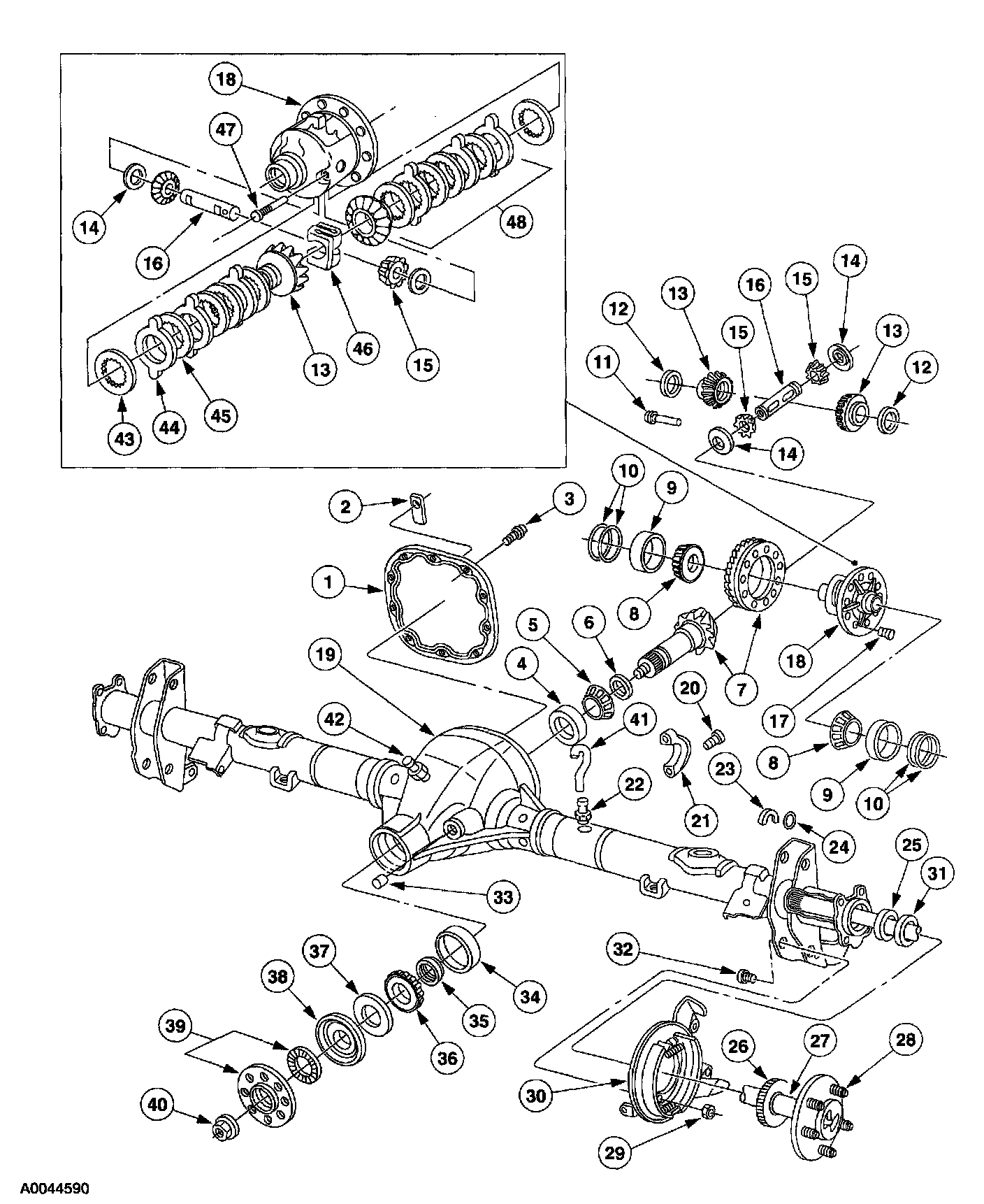

Part 1 Of 3:

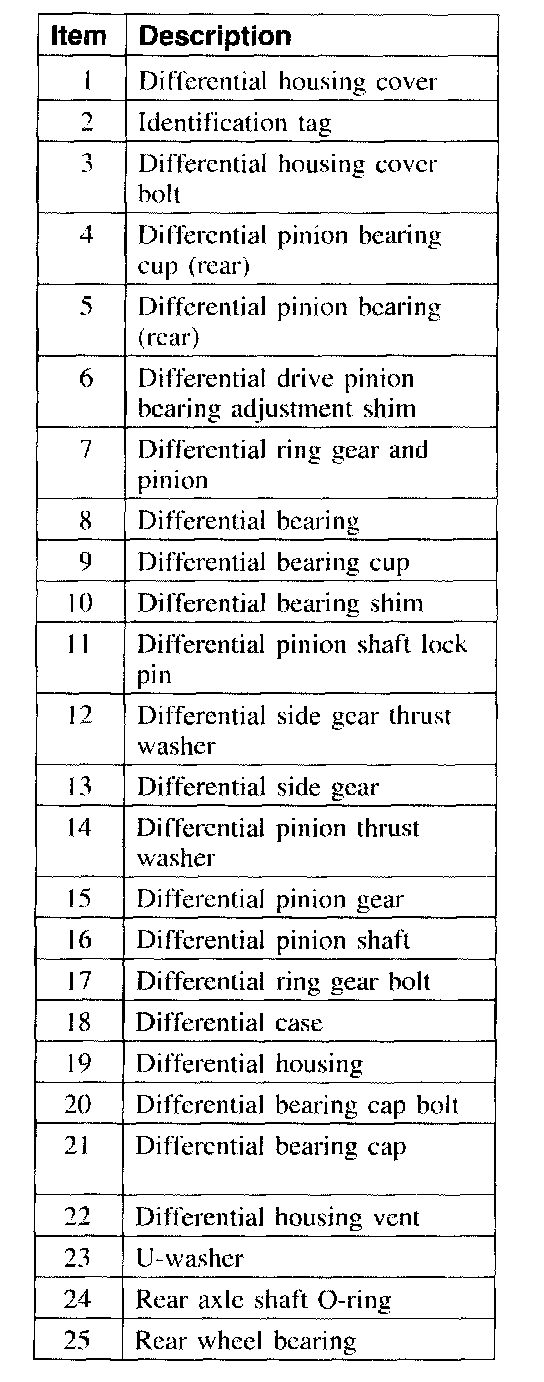

Part 2 Of 3:




Part 3 Of 3:
