Home >> Mercury >> 2003 >> Marauder V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Testing and Inspection >> Pinpoint Tests >> Test E

Test E

PINPOINT TEST E: MULTIFUNCTION SWITCH DOES NOT OPERATE CORRECTLY

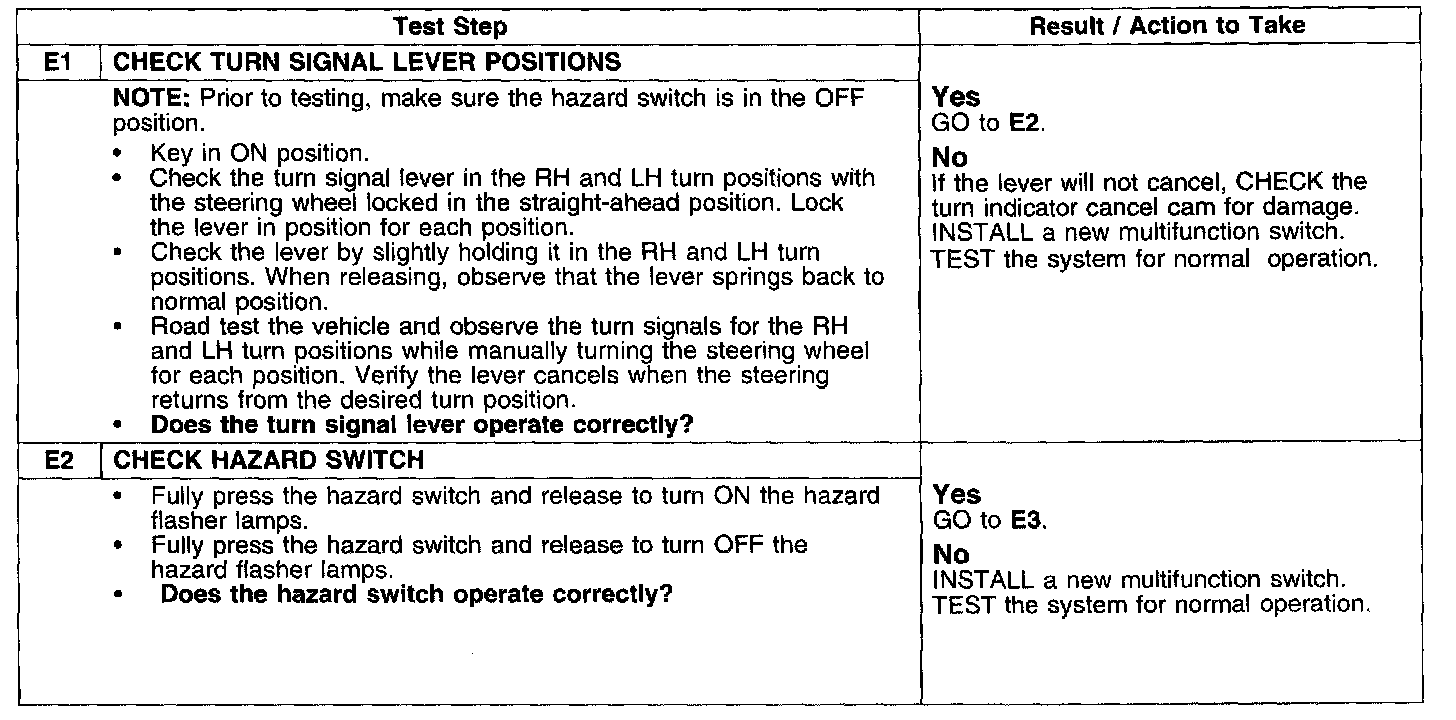

Test E1 - E2:

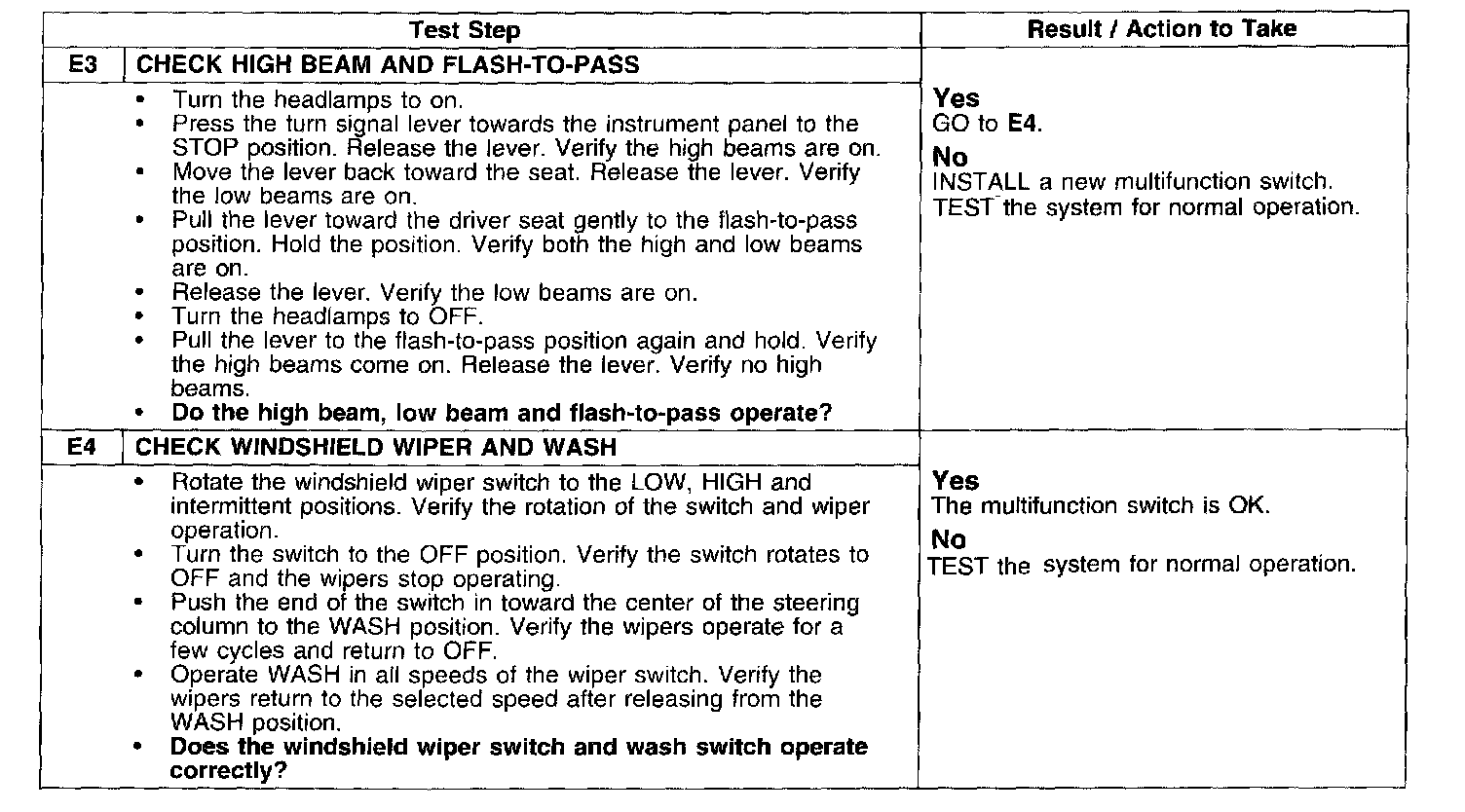

Test E3 - E4:
