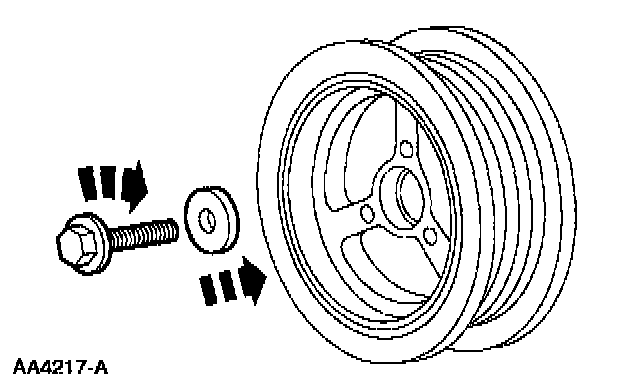

Harmonic Balancer - Crankshaft Pulley





Crankshaft pulley bolt
- Tighten the bolt to 90 Nm (66 ft. lbs.)
- Loosen the bolt one full turn
- Tighten the bolt to 50 Nm (37 ft. lbs.)
- Tighten the bolt an additional 85 to 95 degrees
