Accelerator Cable Bracket

REMOVAL






1. Remove the bolts and the accelerator splash shield.







2. Remove the spring and disconnect the accelerator and speed control cables.

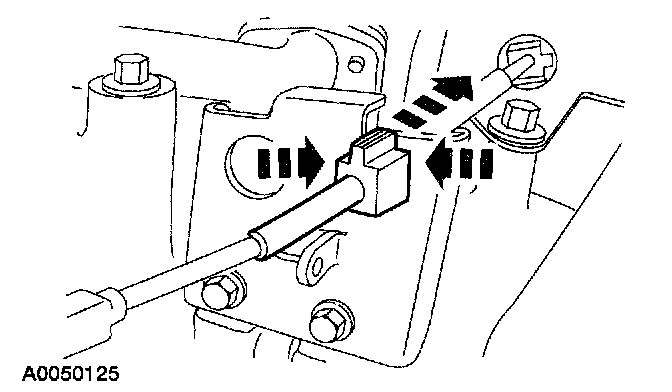

3. Disconnect the accelerator cable from the bracket.

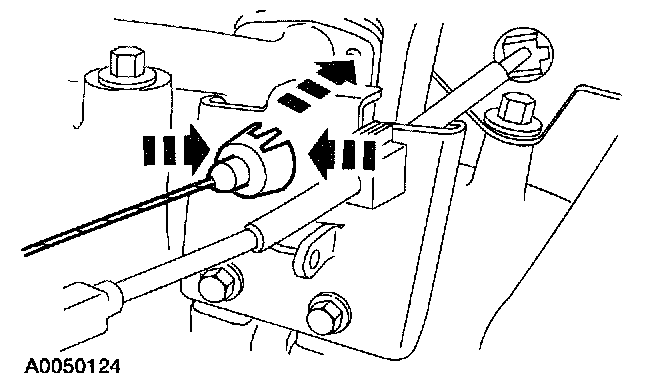

4. Disconnect the speed control cable from the bracket.

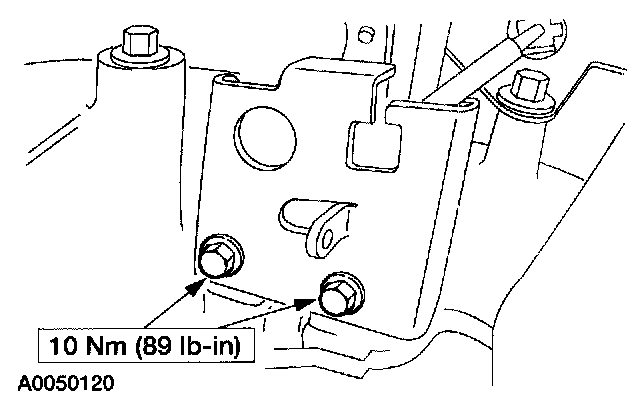

5. Remove the bolts and the accelerator cable bracket.

INSTALLATION
1. To install, reverse the removal procedure.
