Positive Crankcase Ventilation Valve: Service and Repair

REMOVAL

NOTE: 4.6L (2V) shown, 4.6L (4V) similar.

1. Remove the resonator

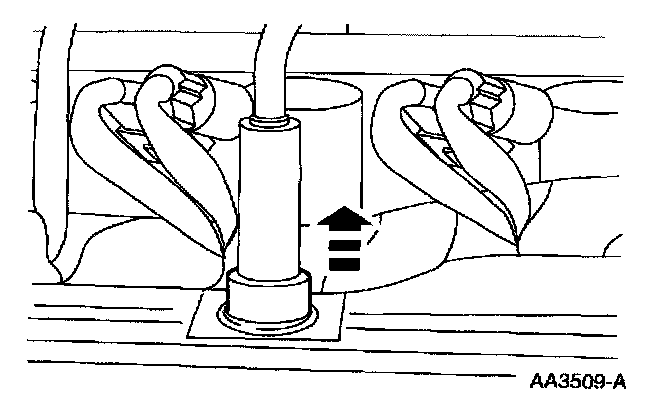

2. Remove the Positive Crankcase Ventilation (PCV) valve from the grommet.

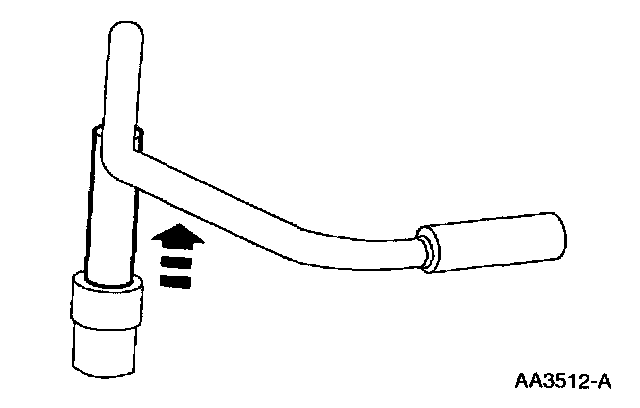

3. Remove the PCV valve from the crankcase vent connector and hose.

INSTALLATION
1. To install, reverse the removal procedure.
