Home
>>
Mercury
>>
2003
>>
Marauder V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Diagrams
Drive Belt: Diagrams

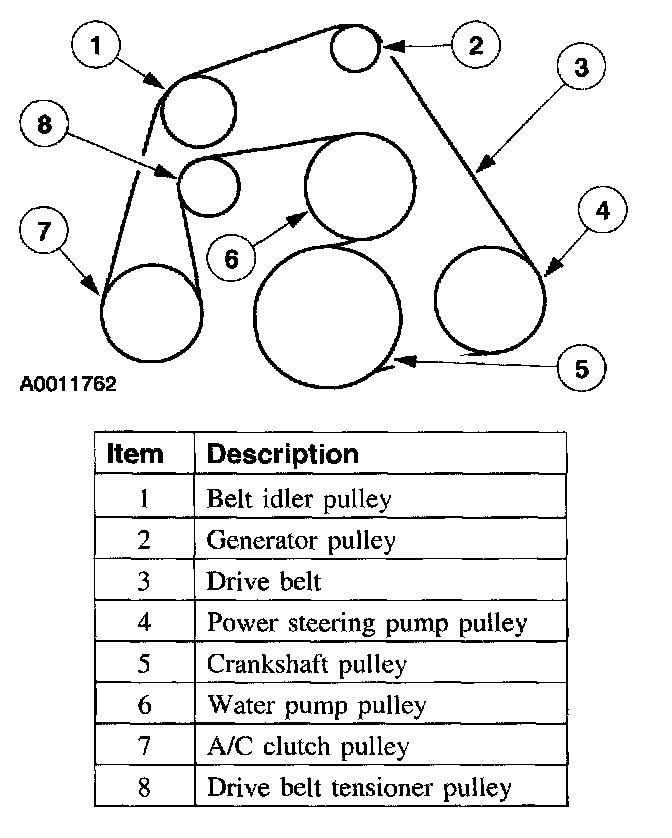

Component Locations - 4.6L (4V):

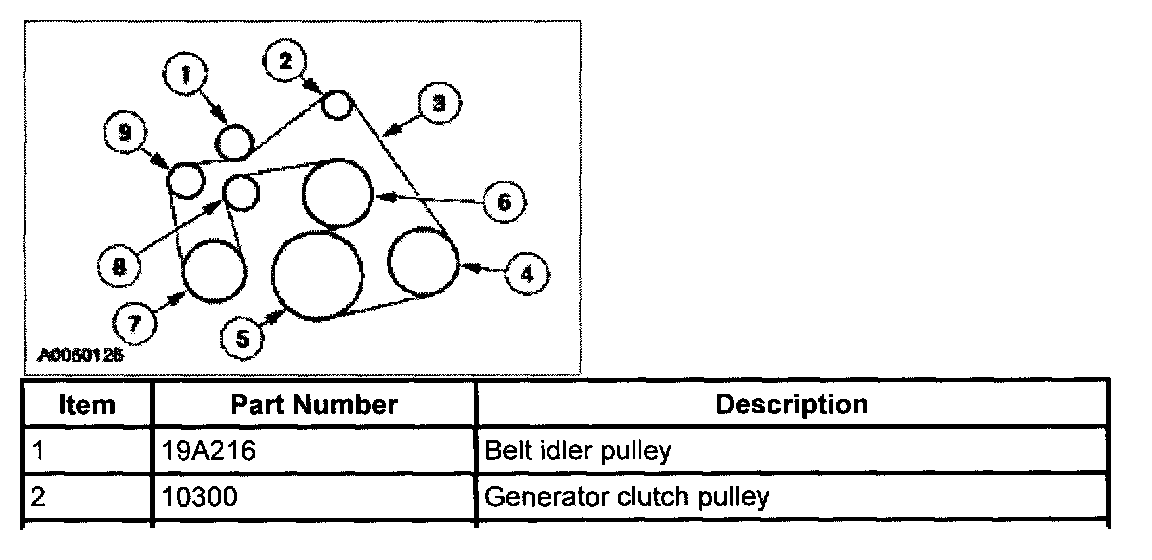

Component Locations - 4.6L (4V):
