Home >> Mercury >> 2003 >> Marauder V8-4.6L DOHC VIN V >> Repair and Diagnosis >> Lighting and Horns >> Testing and Inspection >> Pinpoint Tests >> Test U

Test U

PINPOINT TEST U: THE DECK LAMPS ARE INOPERATIVE

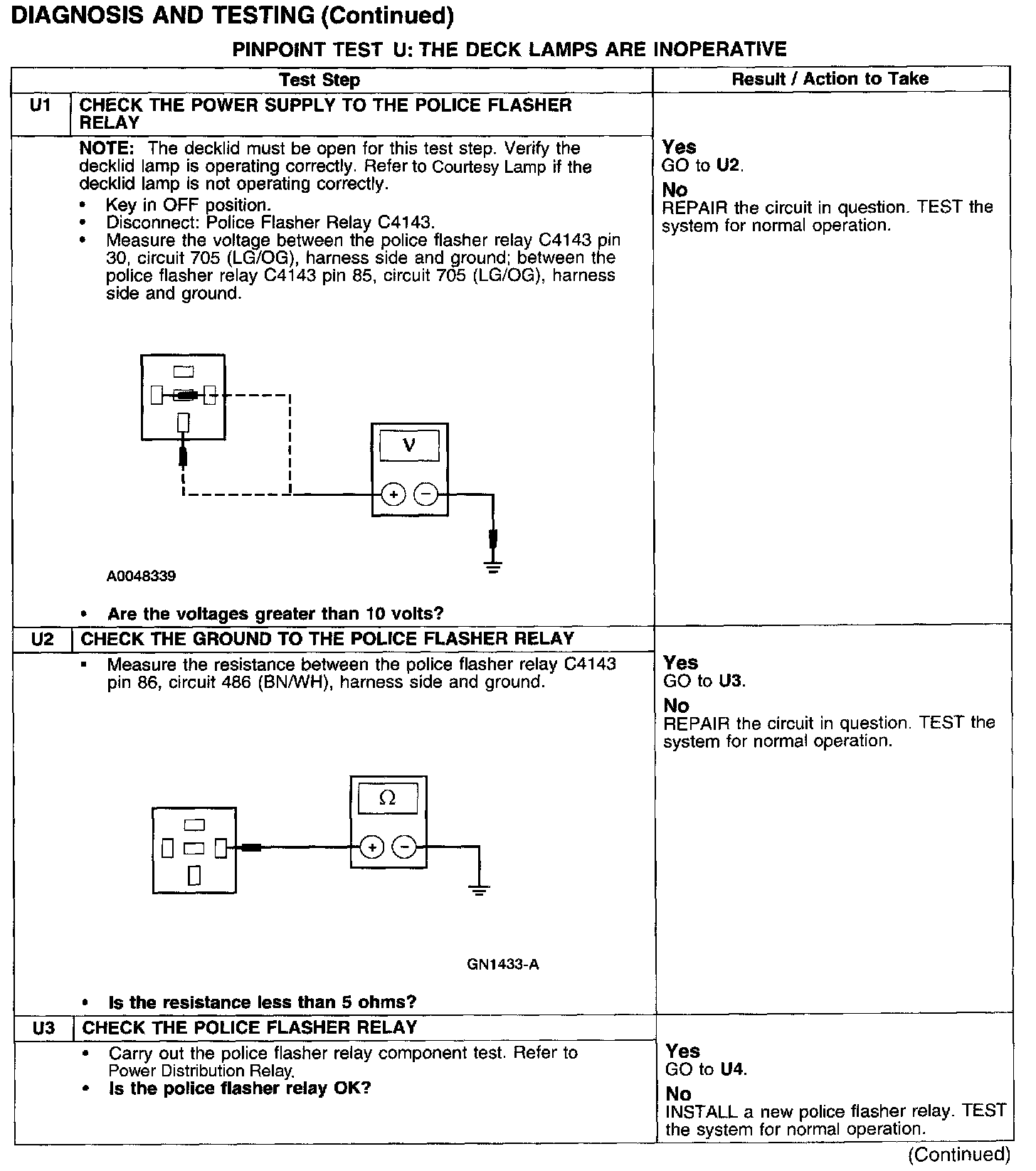

Test U1-U3:

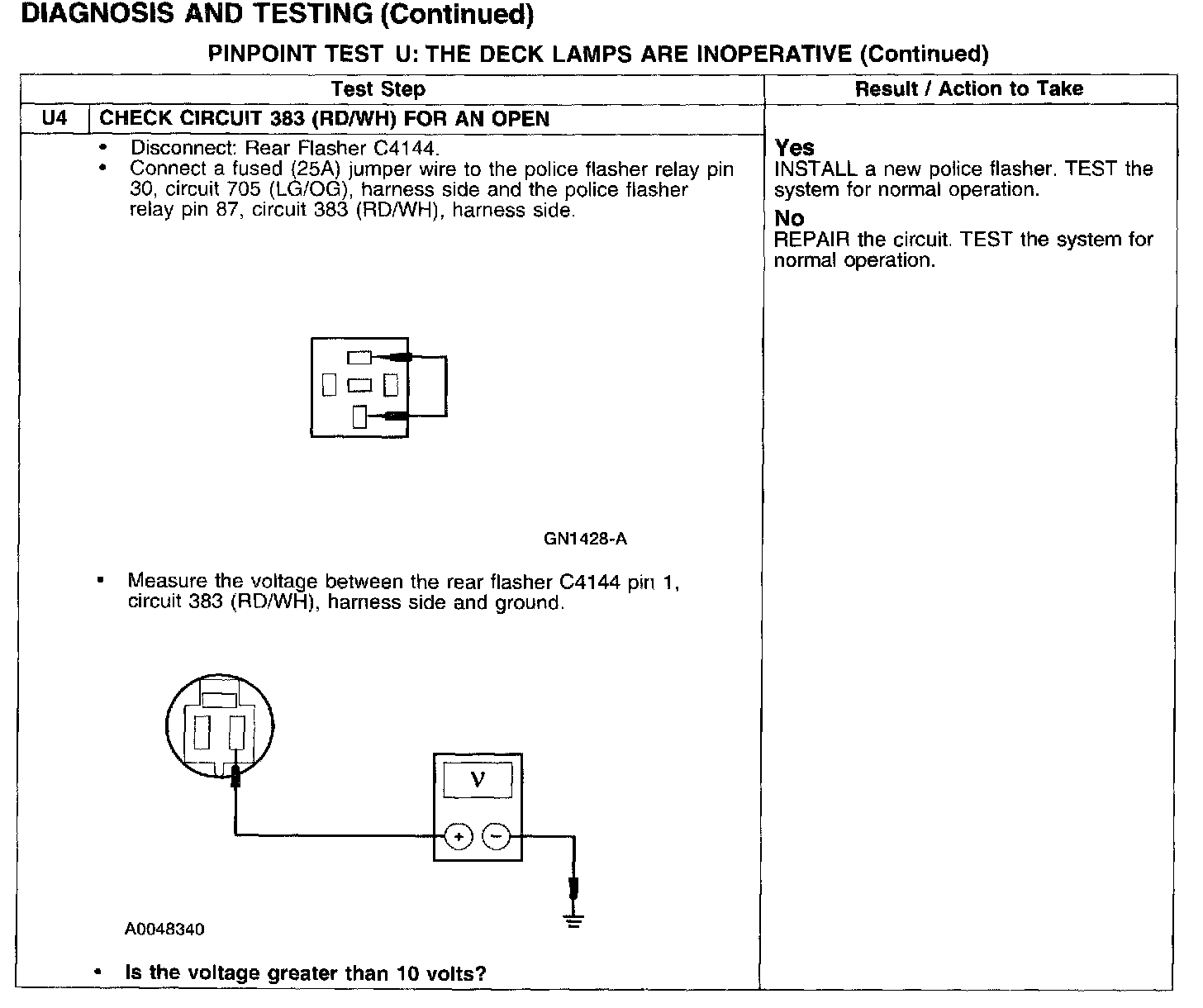

Test U4:
