Vacuum Reservoir HVAC: Service and Repair

REMOVAL

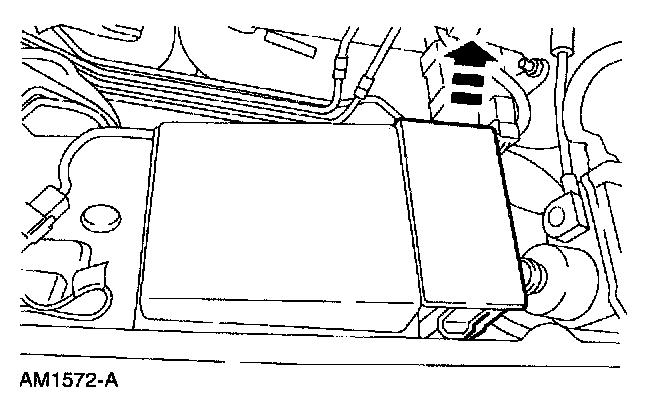

1. Remove the relay module.

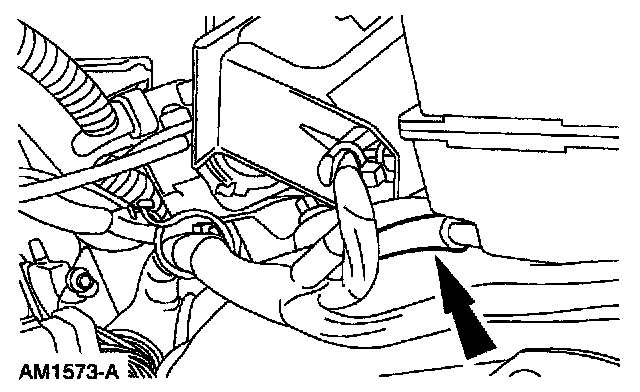

2. Disconnect the vacuum hose.
3. Raise the vehicle.

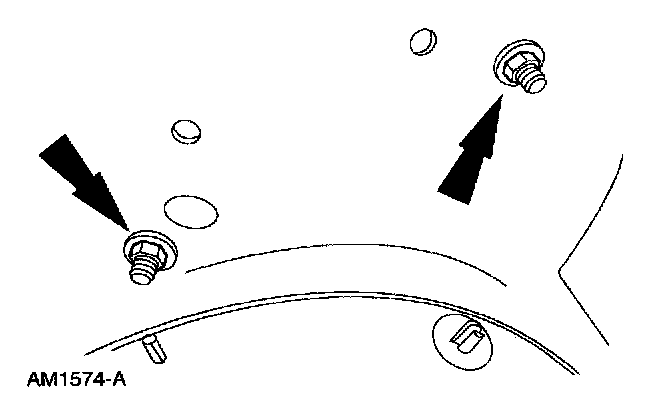

4. From inside the LH wheel well, remove the nuts.
5. Remove the vacuum reservoir tank.

INSTALLATION
1. To install, reverse the removal procedure.
