High Pressure Safety Valve HVAC: Service and Repair

REMOVAL

NOTE: Installation of a new suction accumulator is not required when repairing the air conditioning system, except when there is physical evidence of contamination from a failed A/C compressor or damage to the suction accumulator.

1. Recover the refrigerant.

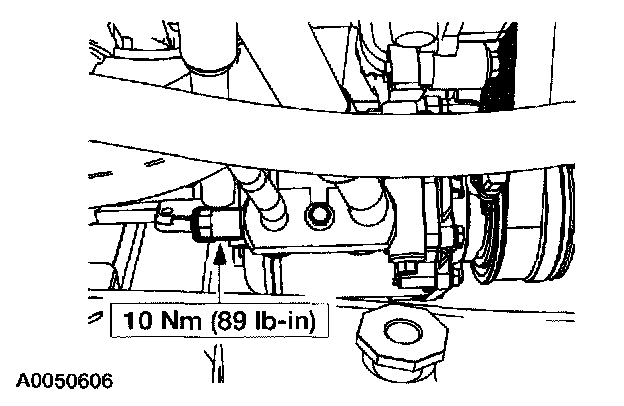

2. Remove the A/C compressor pressure relief valve.

INSTALLATION
1. To install, reverse the removal procedure.
2. Evacuate, leak test and charge the refrigerant system.
