Mercury
>>
2003
>>
Marauder V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pressure Sensor/Switch
>>

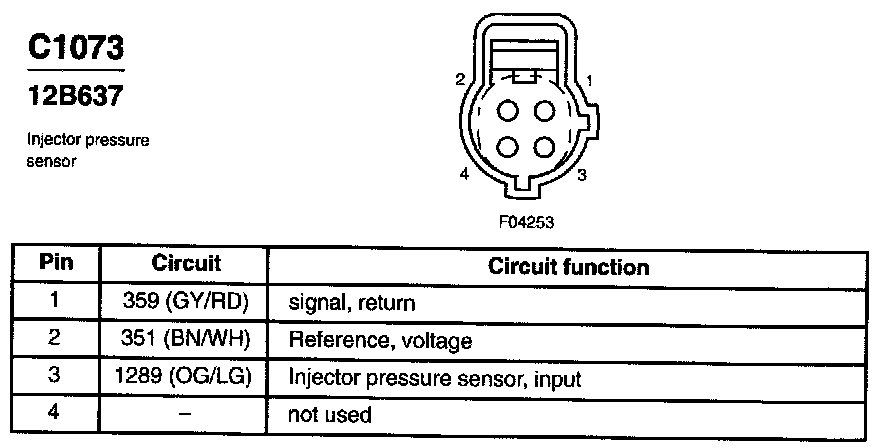

Injector Pressure Sensor C1073
Injector Pressure Sensor C1073
