Home
>>
Mercury
>>
2003
>>
Marauder V8-4.6L DOHC VIN V
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
System Diagram
>>

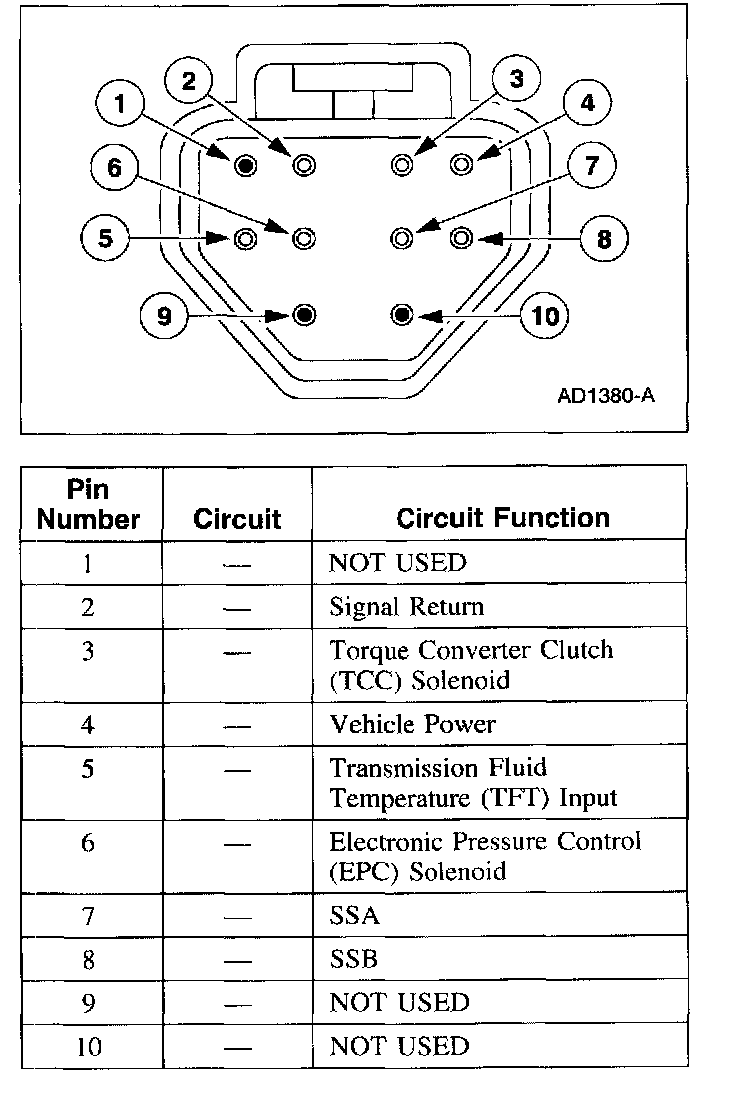

Transmission Vehicle Harness Connector
Transmission Vehicle Harness Connector
Transmission Vehicle Harness Connector
