Rear Quarter Trim Panel

REMOVAL
1. Remove the rear seat.







2. Position the rear door weatherstrip aside.

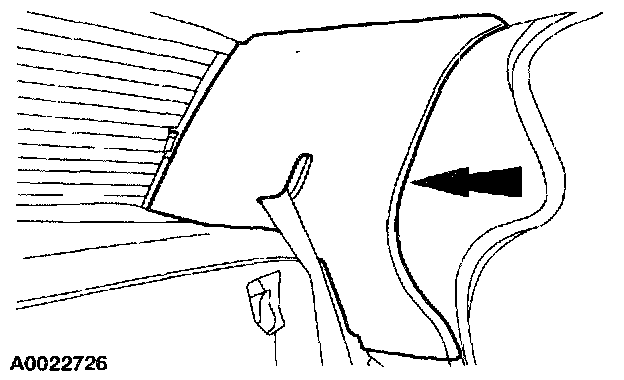

3. Remove the rear quarter trim panel.
- Slide the safety belt through the quarter trim panel opening.

INSTALLATION

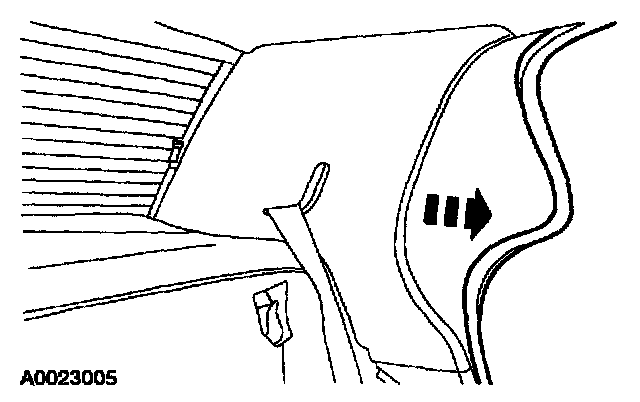

1. To install, reverse the removal procedure.
- Check the restraint system for correct operation.
