Disassembly and Assembly

DISASSEMBLY
1. Remove the armrest.

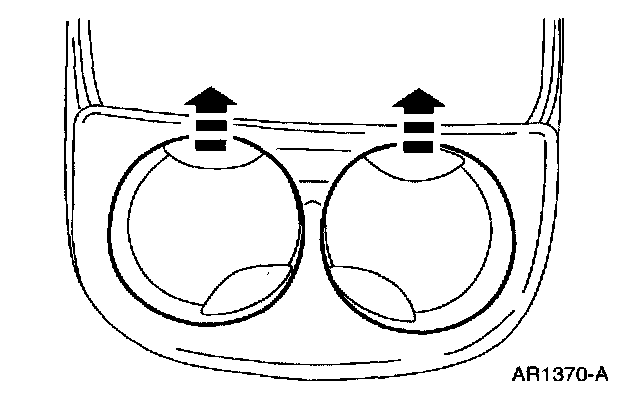

2. Remove the rubber inserts.







3. Remove the screws.

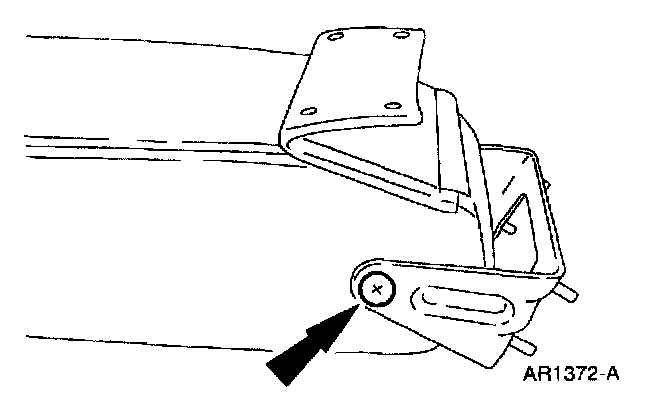

4. Remove the two hinge screws.

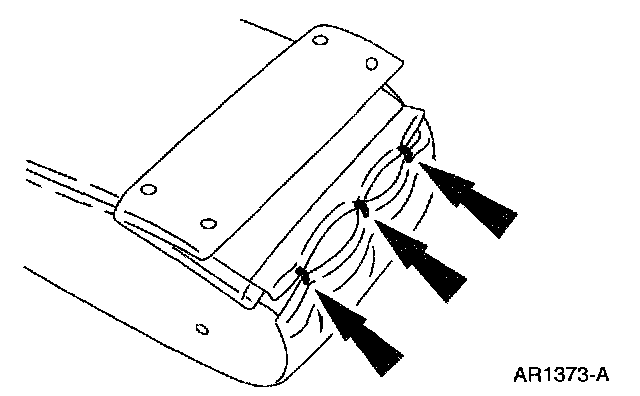

5. Remove the hog rings.
6. Remove the armrest trim.

ASSEMBLY
1. To assemble, reverse the disassembly procedure.
