Test A

PINPOINT TEST A: DTC C1300-ABS HYDRAULIC PUMP MOTOR CIRCUIT FAILURE

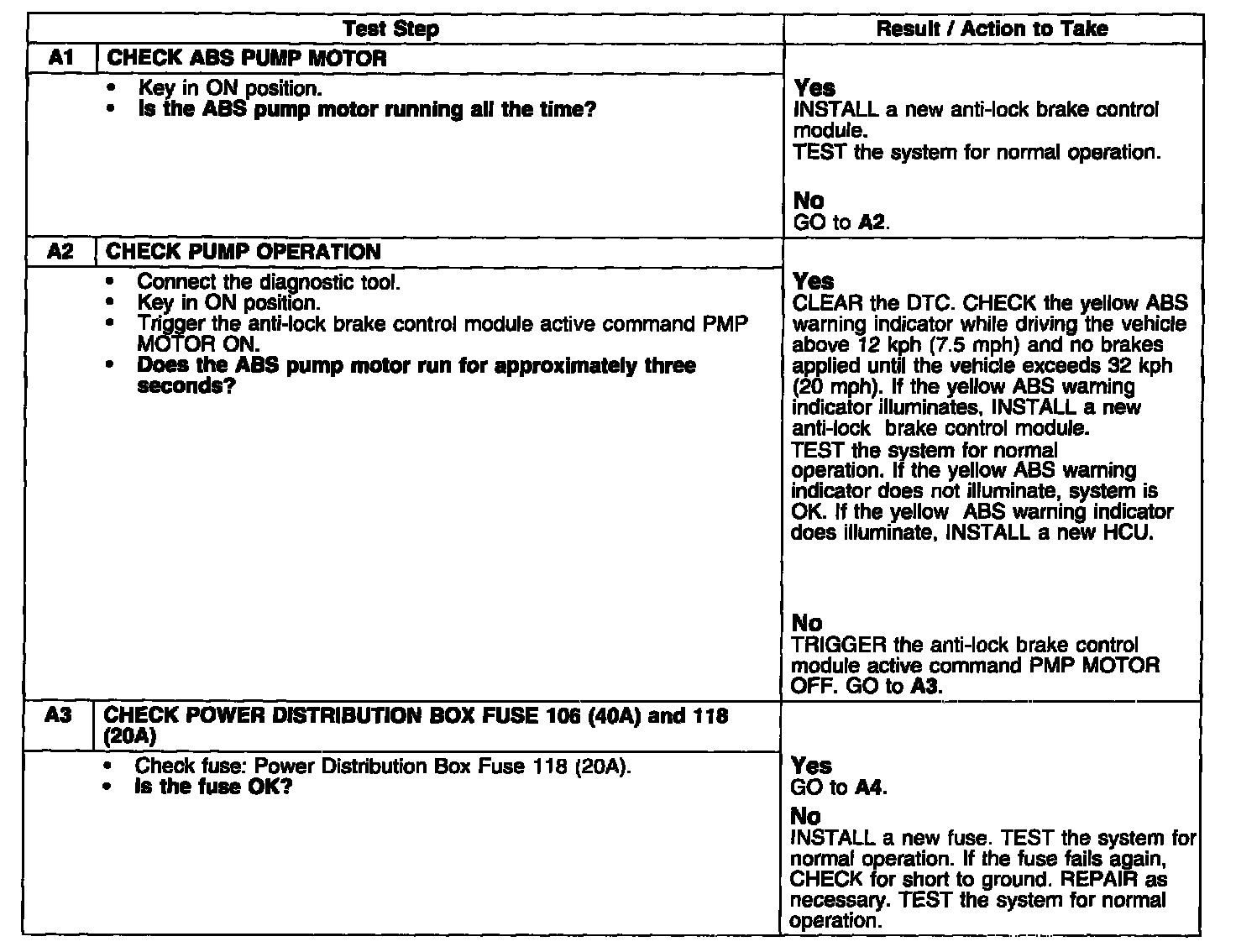

Test A1-A3:

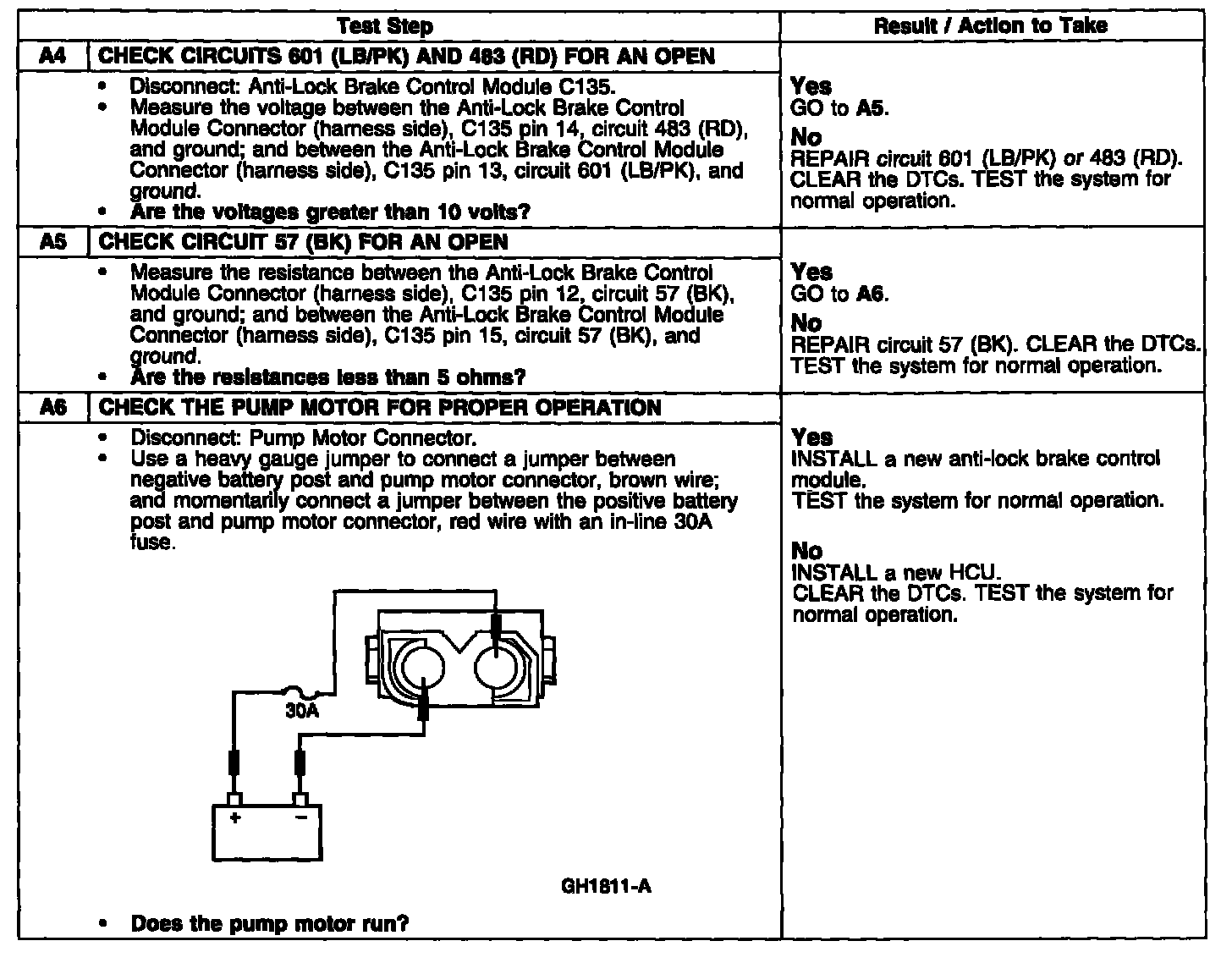

Test A4-A6:

CAUTION: The Flex Probe Kit must be used for all test connections. lose of standard multimeter probes may damage wiring terminals.
