Four Door

REMOVAL
1. Remove the second row seat cushion and seat backrest.

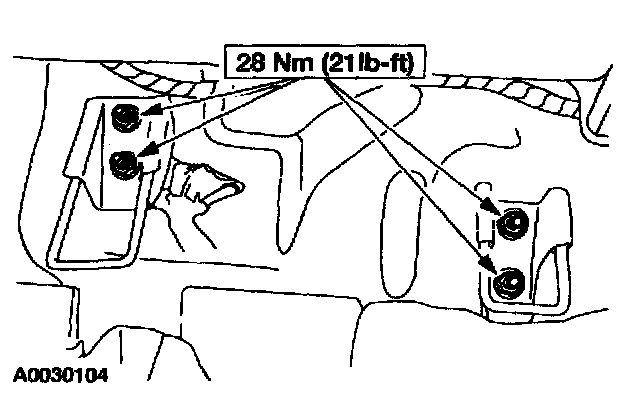

2. Remove the nuts and the Lower Anchor and Tether for CHildren (LATCH) attaching brackets.

NOTE:
^ Driver side shown, passenger side similar.
^ Apply Threadlock 262 to the studs before installing the nuts.

INSTALLATION
1. To install, reverse the removal procedure.
^ Apply Threadlock 262 to the studs before installing the nuts.
