Mercury
>>
2002
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams
Cigar Lighter

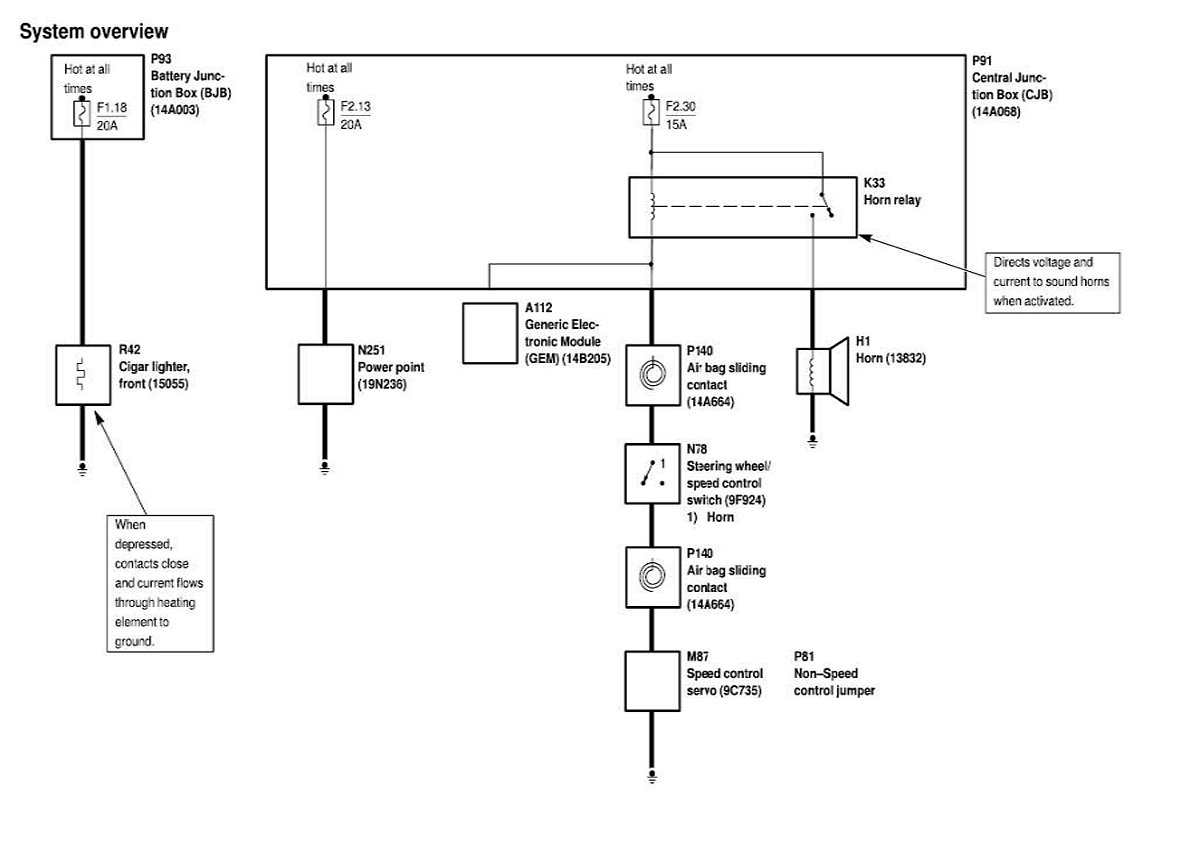

System Overview:

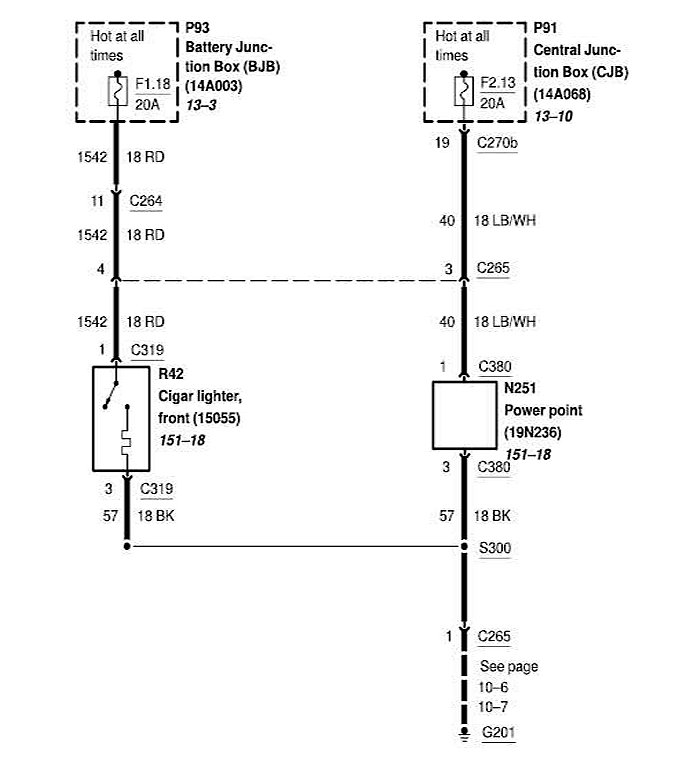

Cigar Lighter, Front:
