Home >> Mercury >> 2002 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 101

Diagram Set 101

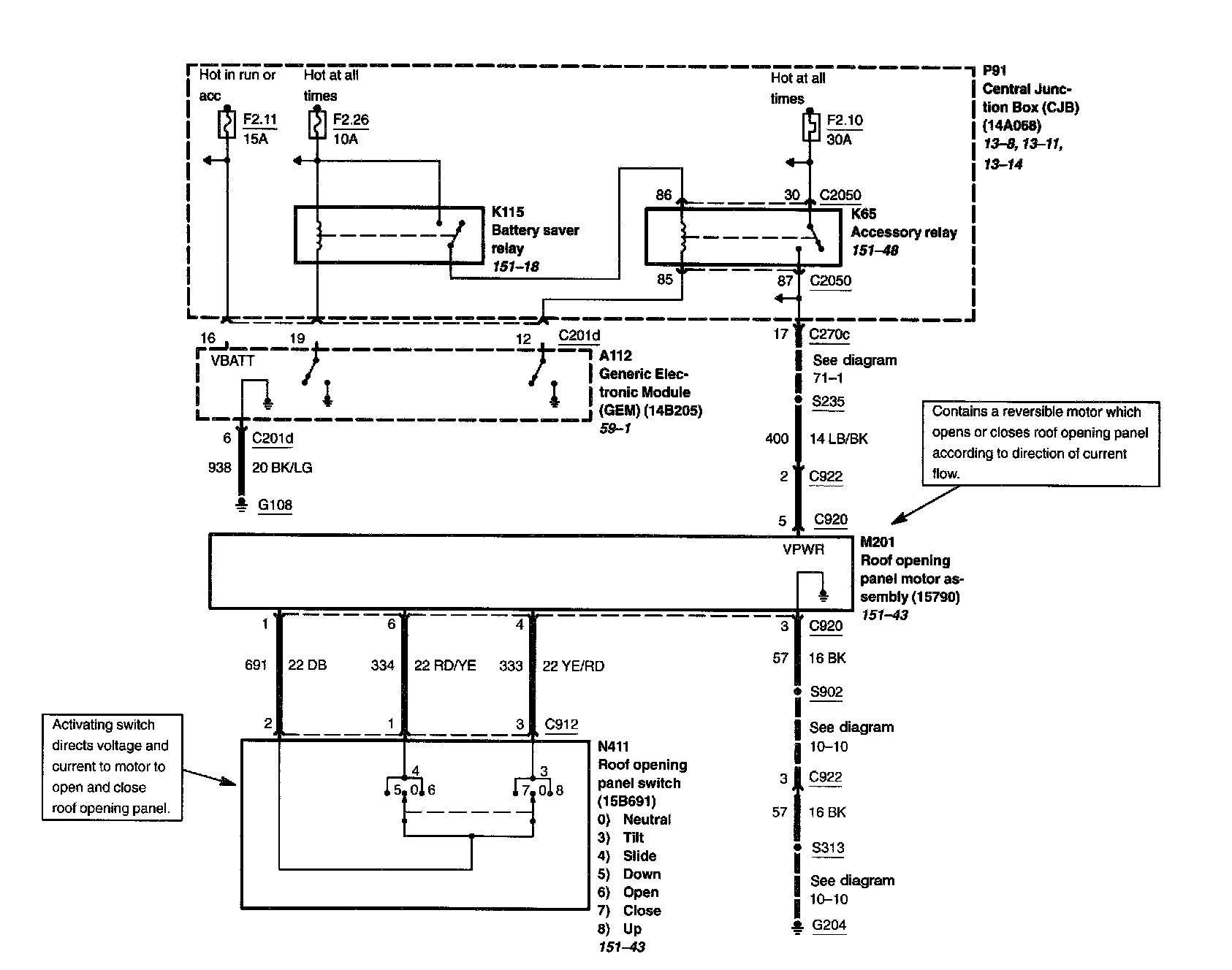

Diagram 101-1:
