Turn Signal Switch: Testing and Inspection

Introduction To Component Testing:

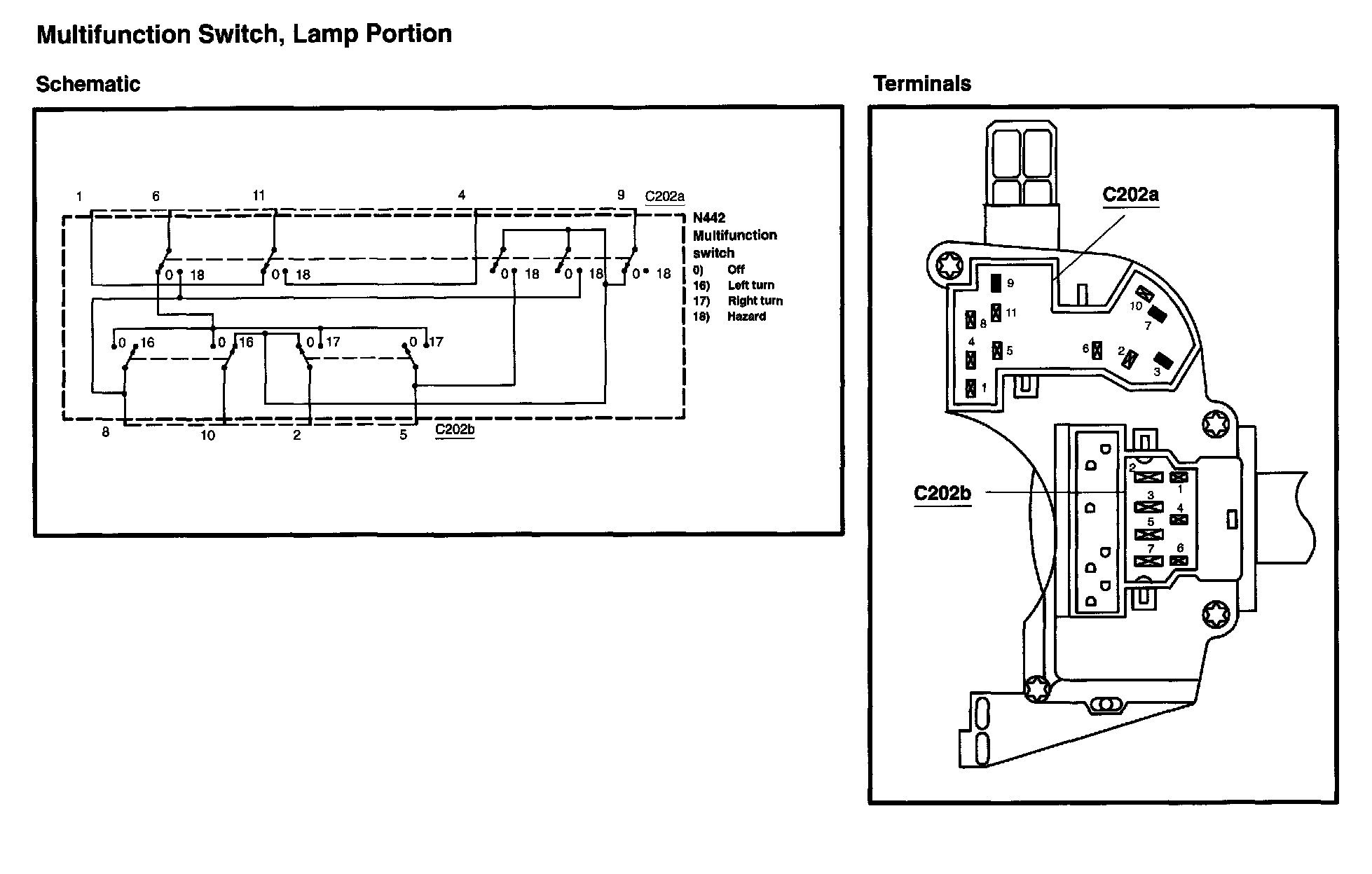

Multifunction Switch, Lamp Portion:

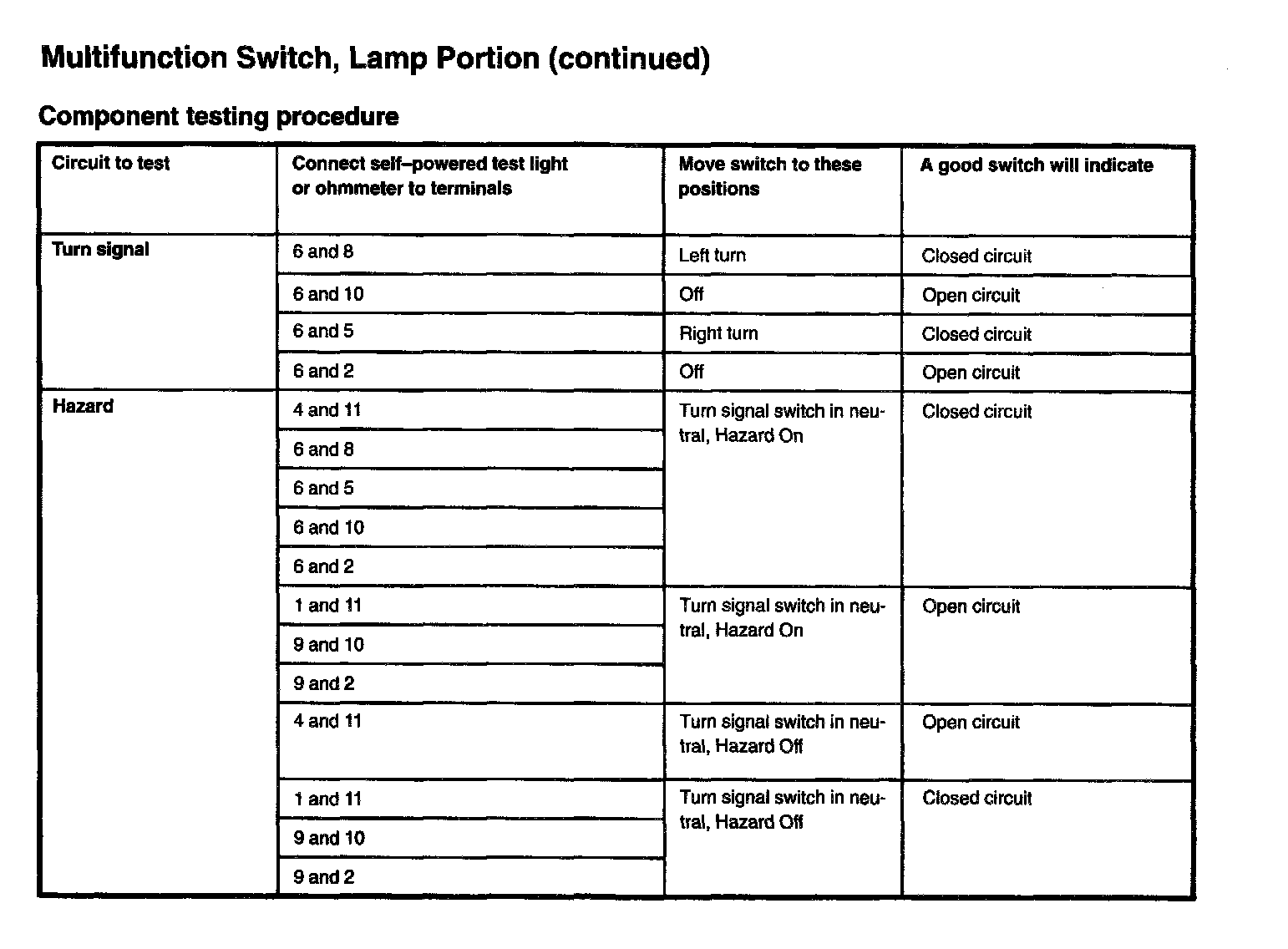

Multifunction Switch, Lamp Portion:
