Transmission Mount: Service and Repair

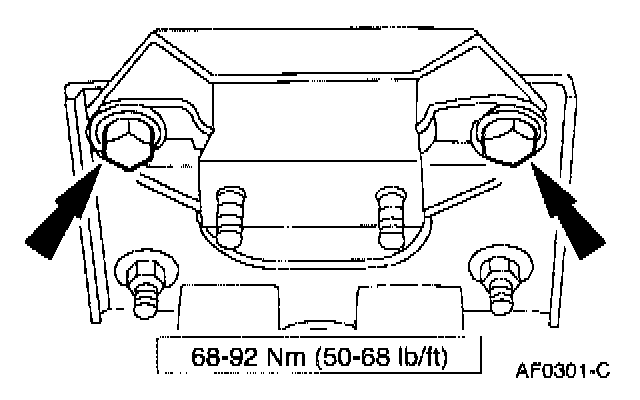

Transmission Insulator and Retainer
Removal
1. Remove transmission support crossmember.





2. Remove the nuts from the transmission support insulator and remove the transmission support insulator.





3. To install, reverse the removal procedure.
