Upper

Arm-Upper

Removal

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in mayor service expense. They must be replaced with the same part number or an equivalent part if replacement is necessary. Do not use a replacement part of lesser quality or substitute design. Torque values must be used as specified during reassembly to ensure proper retention of these parts.

1. Raise and support the vehicle.
2. Remove the wheel and tire assembly.
3. Place a suitable jack stand under the front suspension lower arm and lower the vehicle until the lower arm begins to move.
4. Attach a piece of safety wire to the front wheel spindle and secure the spindle to the frame.

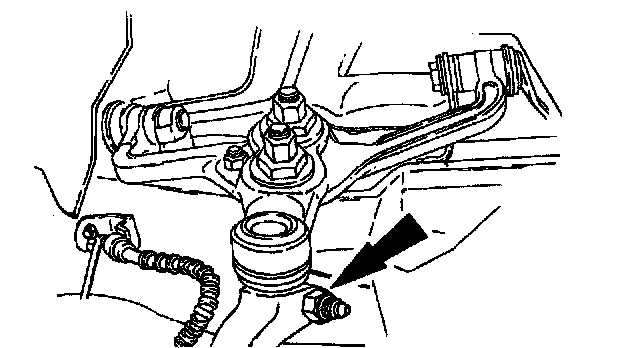

5. Remove the bolt and nut.





6. Remove the front suspension upper arm.

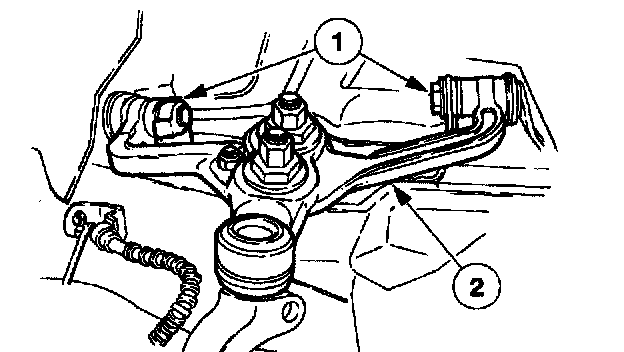

1 Remove the two nuts and bolts.
2 Remove the front suspension upper arm.

Installation

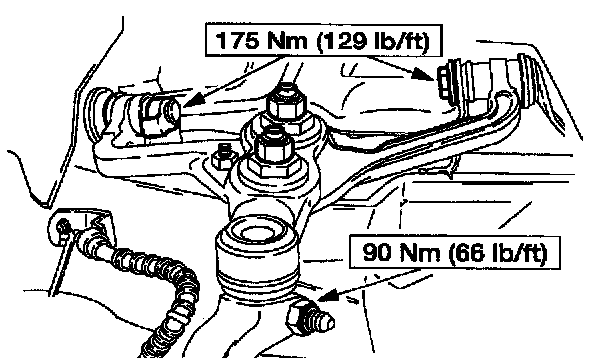

1. NOTE: Do not tighten the front suspension upper arm nuts and bolts until the vehicle's suspension is at curb height.

To install, reverse the removal procedure.
2. Check wheel alignment. Adjust if necessary.
