Line - Compressor to Condenser Discharge

REMOVAL
1. Disconnect the battery ground cable.
2. Recover the refrigerant.

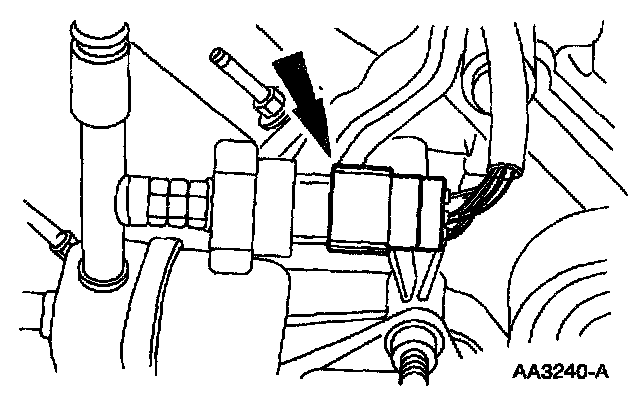

3. Disconnect the A/C pressure cut-off switch wire harness connector.

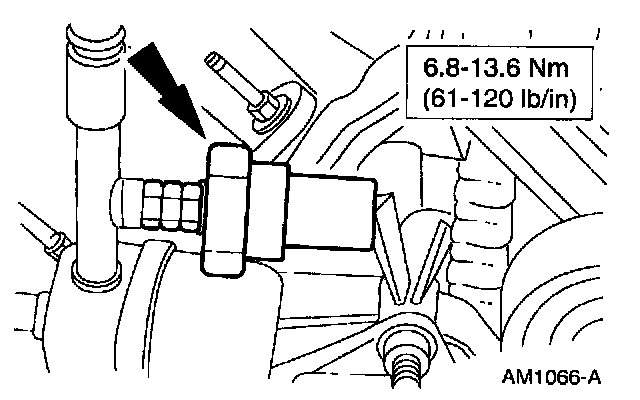

4. Remove the A/C pressure cut-off switch.

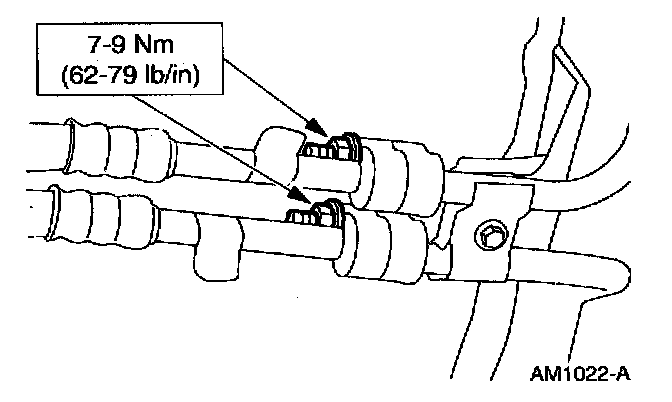

5. Remove the A/C compressor to condenser discharge line nut.







6. Disconnect the A/C compressor to condenser discharge line from the A/C manifold and tube. Refer to the spring lock coupling disconnect and connect procedure.







7. Disconnect the A/C compressor to condenser discharge line from the A/C condenser core and remove the A/C compressor to condenser discharge line.

INSTALLATION

















1. To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
