Mercury
>>
2002
>>
Grand Marquis V8-4.6L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Computers and Control Systems
>>
Vehicle Speed Sensor
Vehicle Speed Sensor

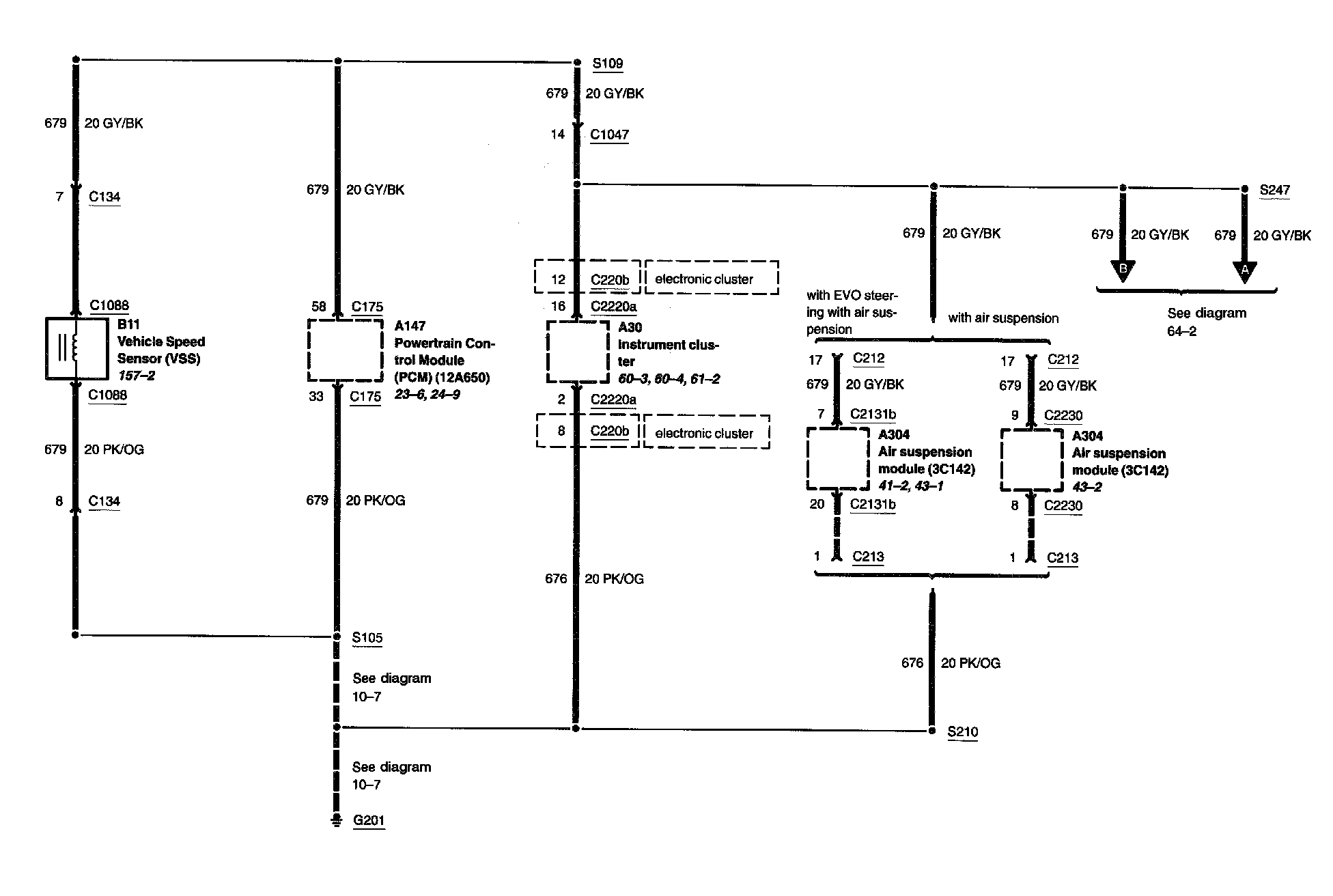

Diagram 64-1:

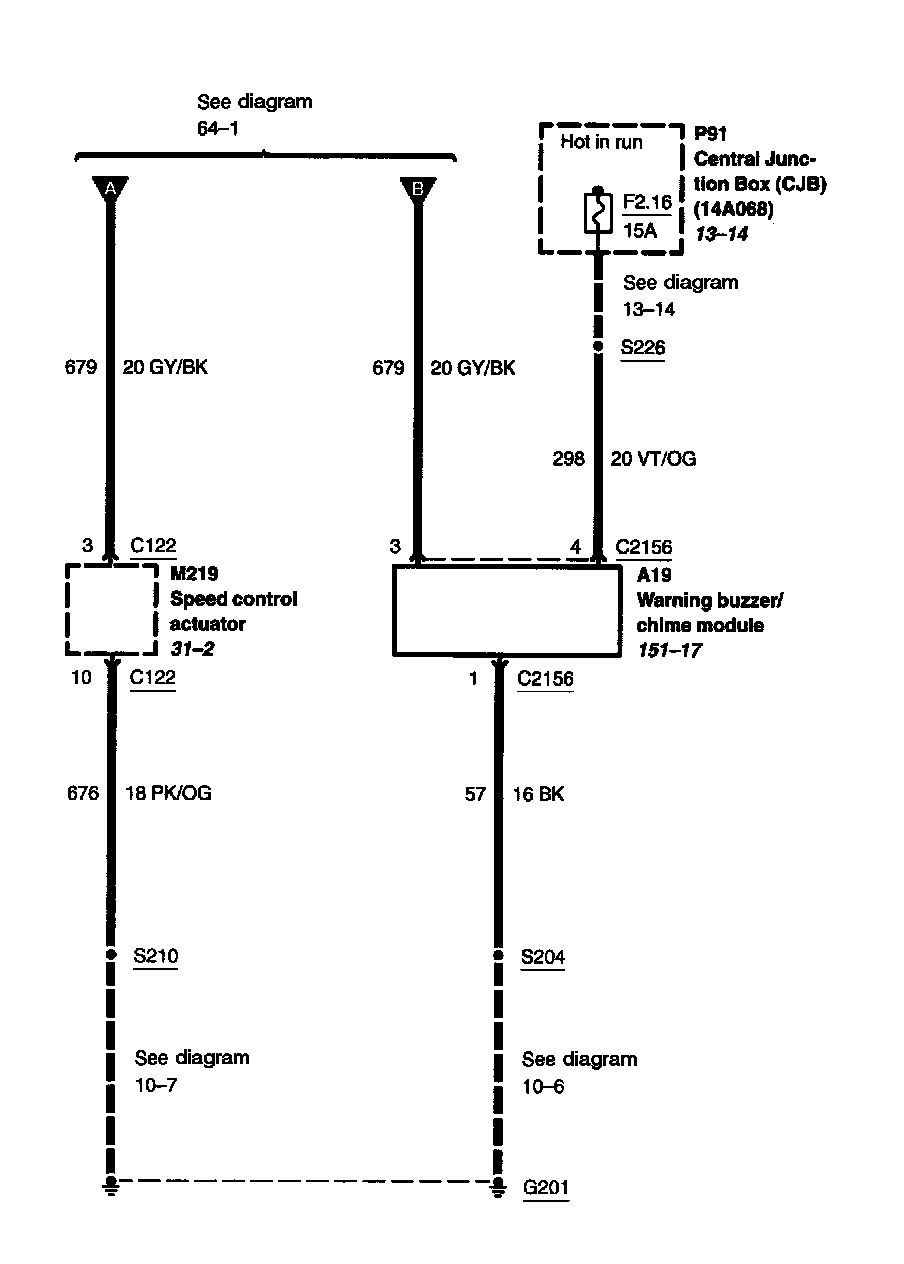

Diagram 64-2:
