Flex Plate: Service and Repair

Flywheel-Vehicles With Automatic Transaxle

Removal
1. Remove the transaxle.





2. Remove the flywheel.
^ Use a suitable strap wrench to hold the crankshaft by the crankshaft pulley.

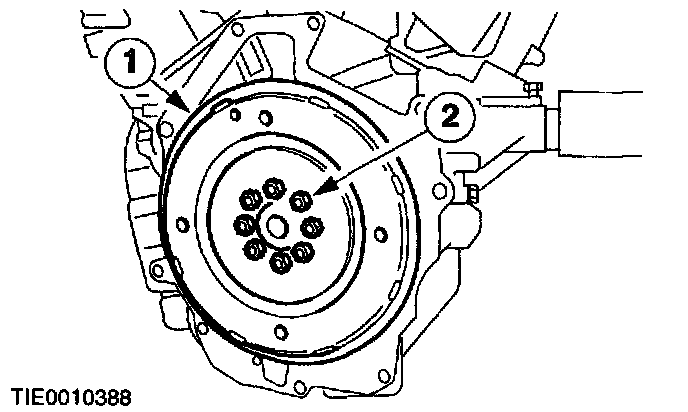

1. Mark the position of the flywheel and crankshaft flange.
2. Remove the flywheel bolts and the flywheel.

Installation

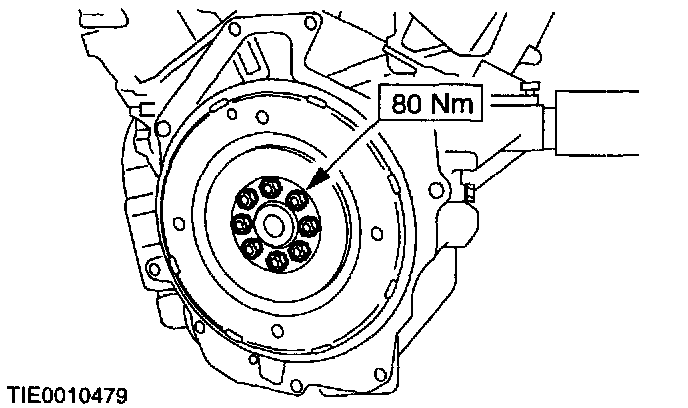

1. Install the flywheel.
^ Use a suitable strap wrench to hold the crankshaft by the crankshaft pulley.
^ Install the flywheel and tighten the bolts working diagonally.
2. Install the transaxle.
