Home >> Mercury >> 2002 >> Cougar V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Ignition Relay >> Locations

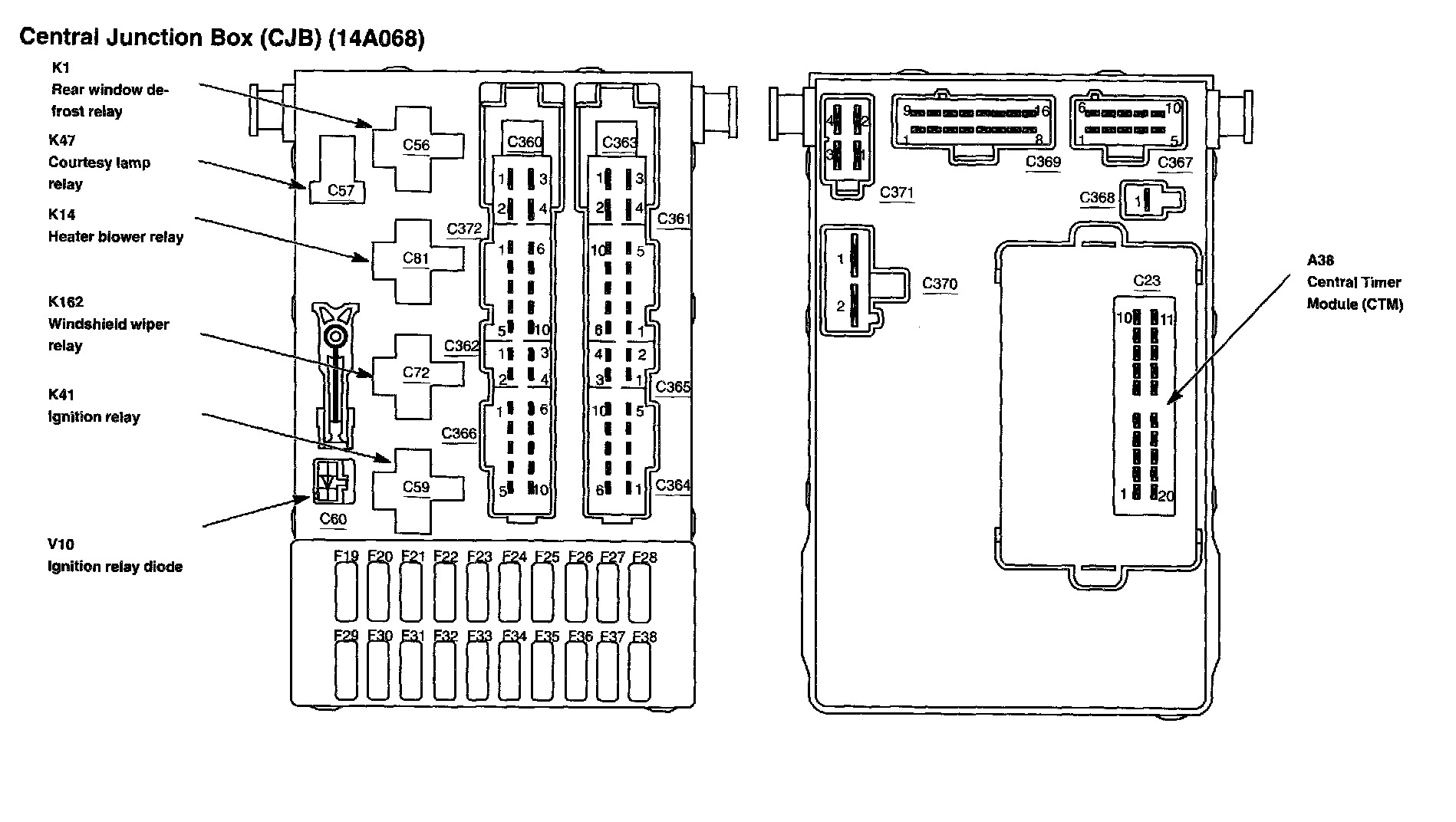

Ignition Relay: Locations

Part 1:






Part 2:






View 151-17:
