Climate Control Assembly

REMOVAL
1. Remove the audio unit.

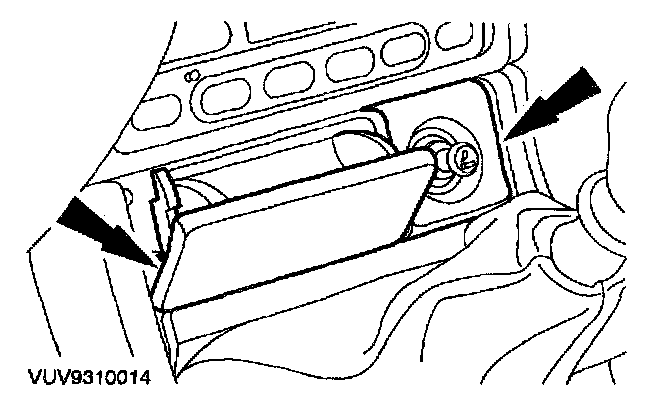

2. Remove the ashtray and cigar lighter bezel.







3. Remove the switch assembly.
1 Detach the switch assembly.
2 Disconnect the electrical connectors.

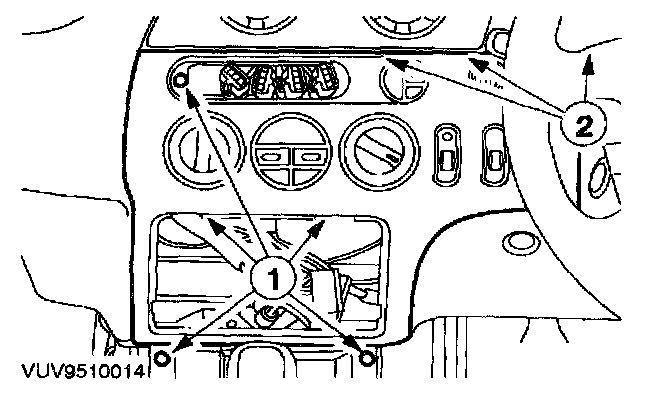

4. Detach the heater control/audio unit bezel.
1 Remove the screws.
2 Detach the panel from the clips.







5. Remove the heater control/audio unit bezel.
- Disconnect the electrical connectors.
- Disconnect the vacuum lines.

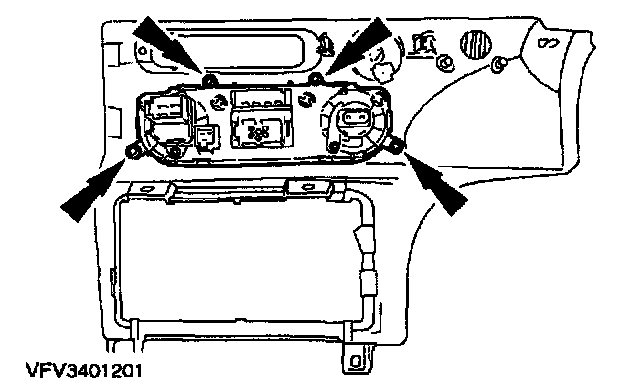

6. Remove the climate control panel.

INSTALLATION
1. To install, reverse the removal procedure.
