Automatic Transmission/Transaxle: Locations

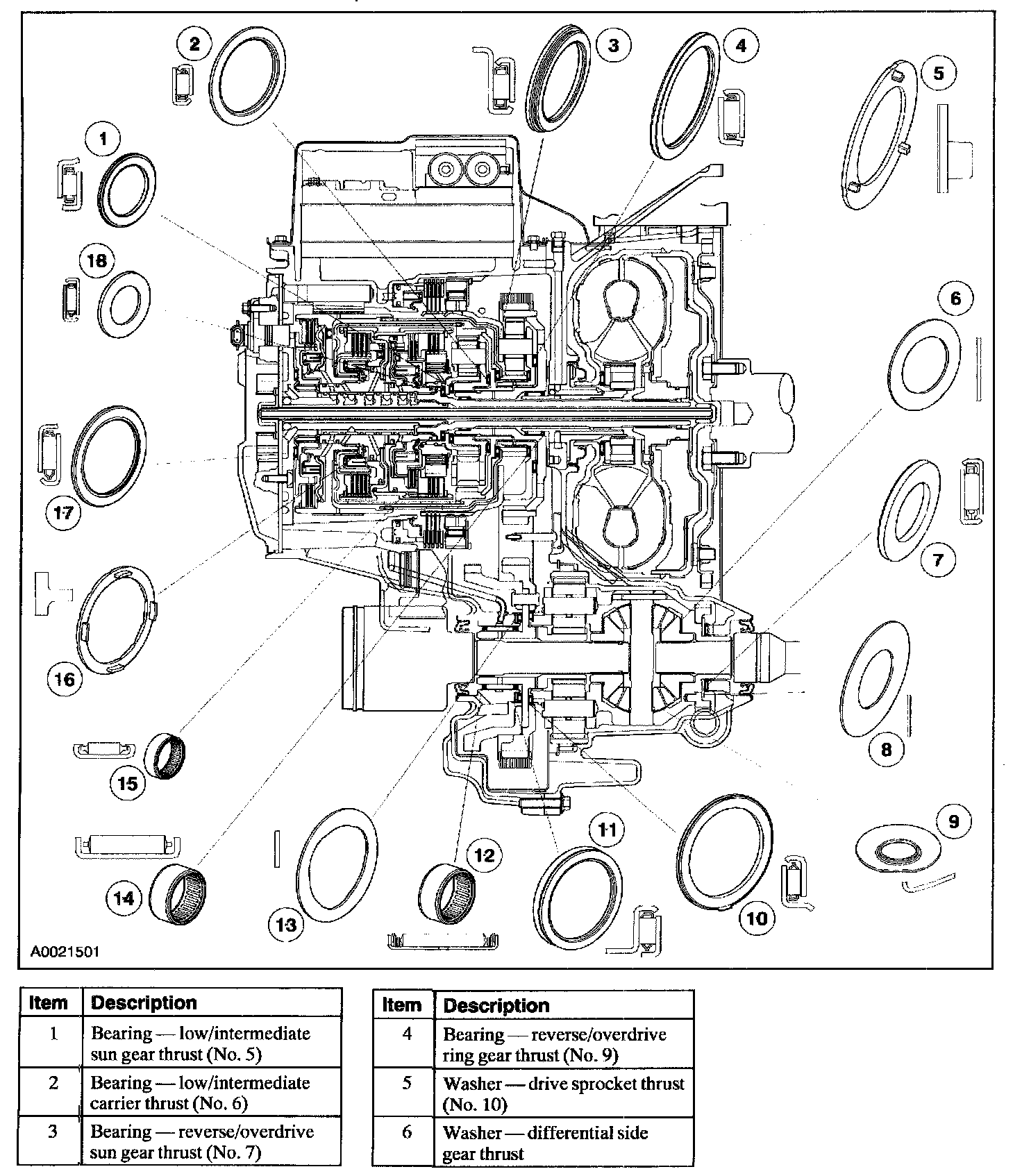

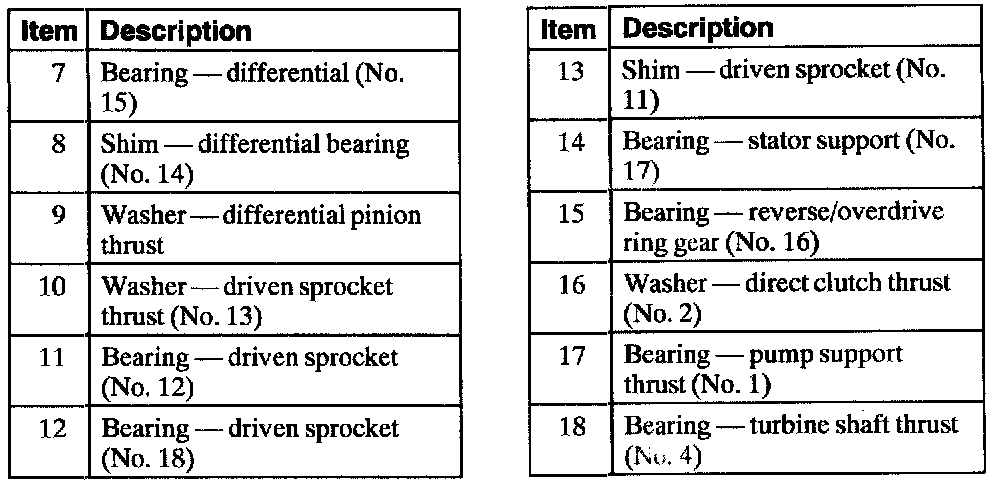

Bushings, Bearing and Thrust Washer Locator





1 of 2





2 of 2
