Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Turn Signal Relay >> Locations

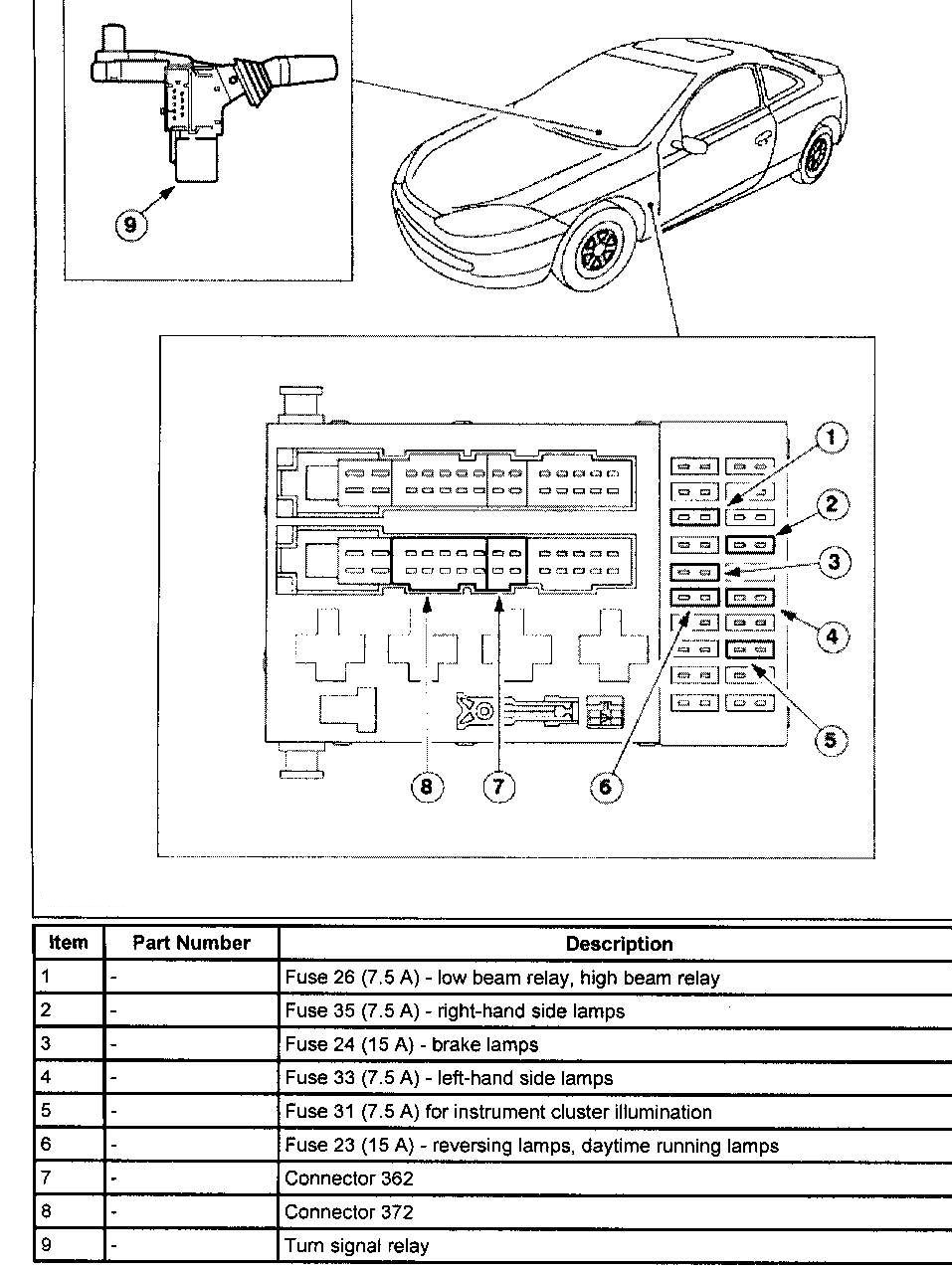

Turn Signal Relay: Locations








Part 1:






Part 2:






View 151-16:






Location Harness Locations
