Drive Belt: Service and Repair

Accessory Drive Belt

Removal
Vehicles with 2.0L engine
1. Raise and support the vehicle.
2. Remove the right-hand front wheel.





3. Remove the splash shield.

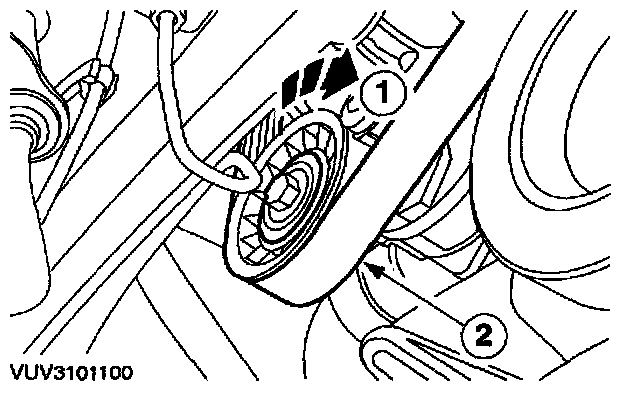

4. Remove the accessory drive belt.
1. Slacken the accessory drive belt by turning the accessory drive belt tensioner in a clockwise direction.
2. Remove the accessory drive belt.





Vehicles with 2.5L engine
5. Remove the accessory drive belt tensioner.
1. Rotate the accessory drive belt tensioner clockwise.
2. Remove the accessory drive belt.

Installation
1. To install, reverse the removal procedure.
