Home >> Mercury >> 2002 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart - Pinpoint Tests

Symptom Chart - Pinpoint Tests

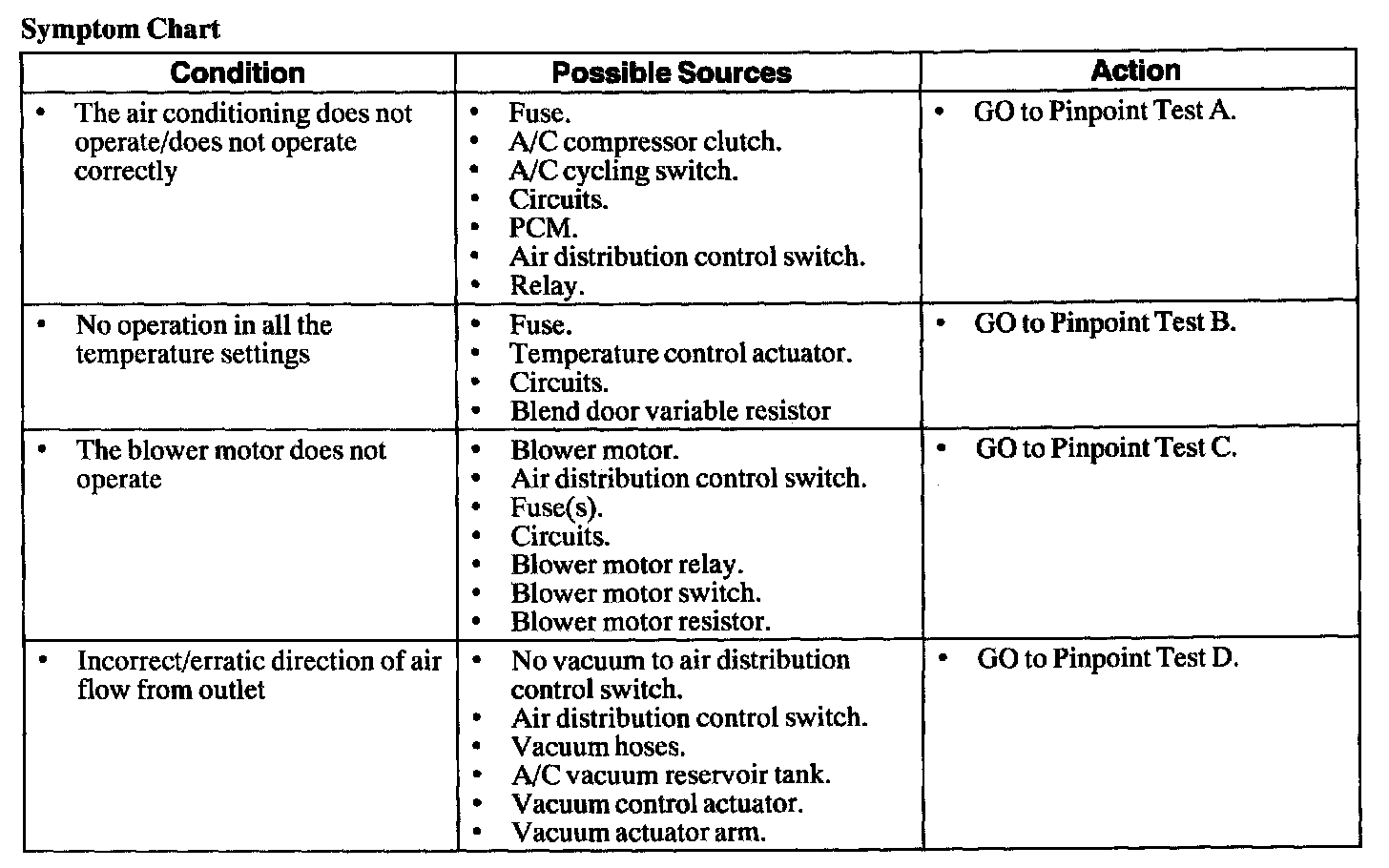

Symptom Chart, Part 1:

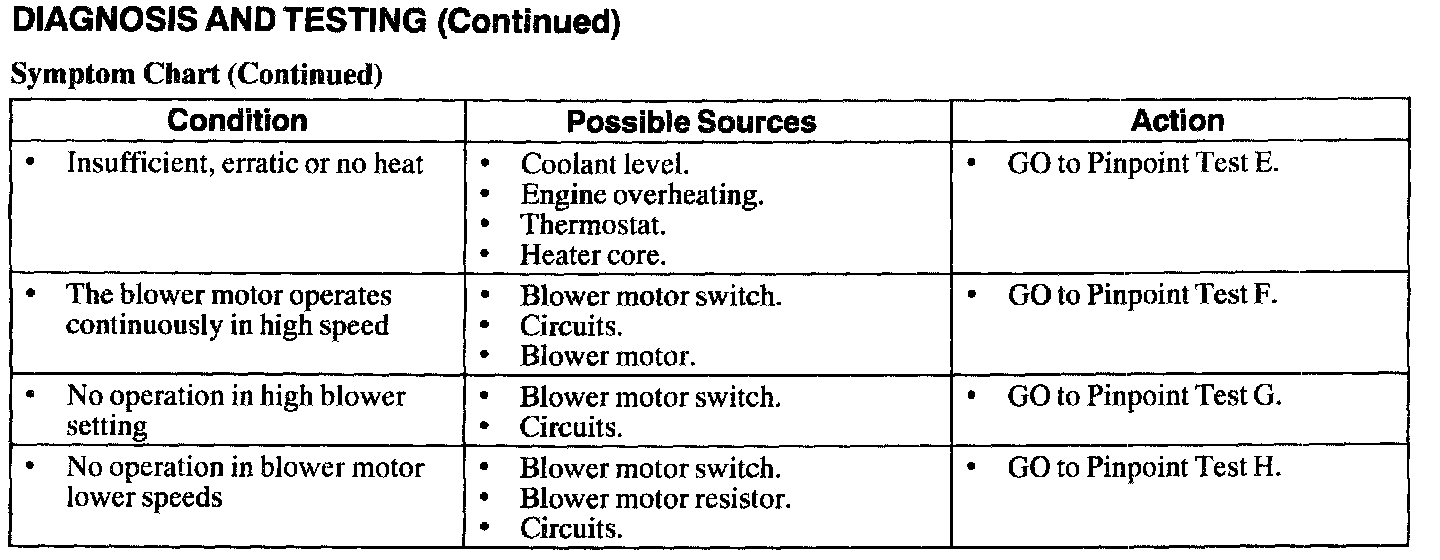

Symptom Chart, Part 2:
