Driver Side Register Duct

REMOVAL







1. Remove the instrument panel lower panel.

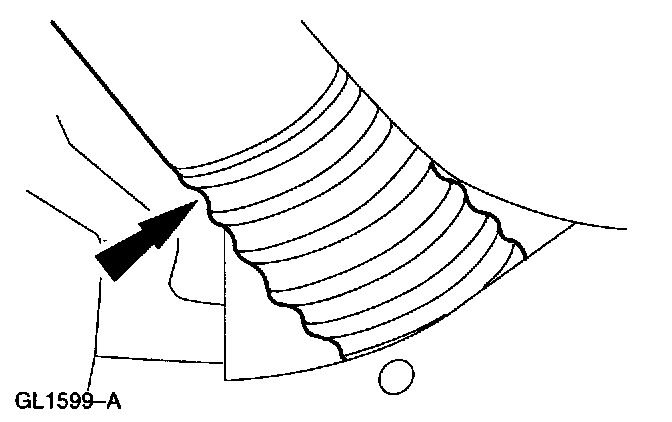

2. Disconnect the duct from the heater/evaporator core housing.







3. Disconnect the duct from the nozzle and remove the duct.
- Cut the cable tie holding the hose to the vehicle cross beam.

INSTALLATION
1. To install, reverse the removal procedure.
- Renew the cable tie.
