Steering Column Joint/Sphere

REMOVAL
1. Remove the steering column.

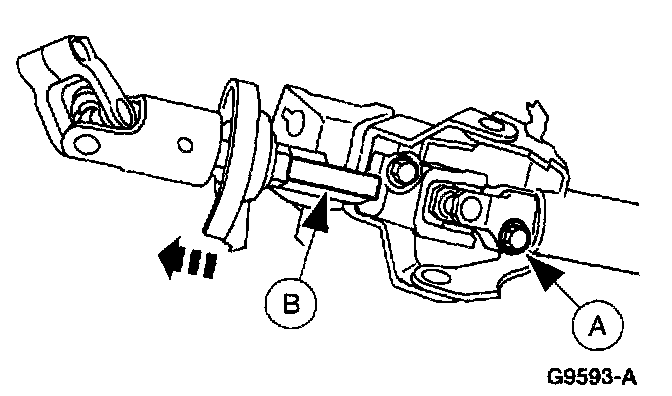

2. Remove the (A) steering column shaft to steering column gear input shaft coupling bolt and remove the (B) steering column intermediate shaft coupling.

INSTALLATION

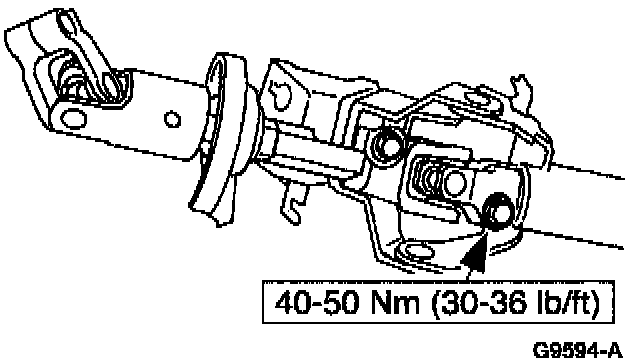

1. To install, reverse the removal procedure.
