Starter Clutch Pedal Position Switch

REMOVAL
1. Disconnect the battery ground cable.
2. Disconnect the switch connector.

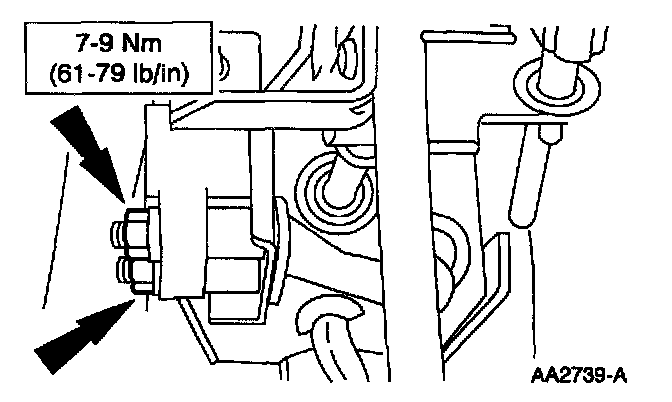

3. Remove the two nuts and the switch.

INSTALLATION







1. To install, reverse the removal procedure.
