Mercury
>>
1999
>>
Tracer L4-122 2.0L SOHC VIN P SFI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

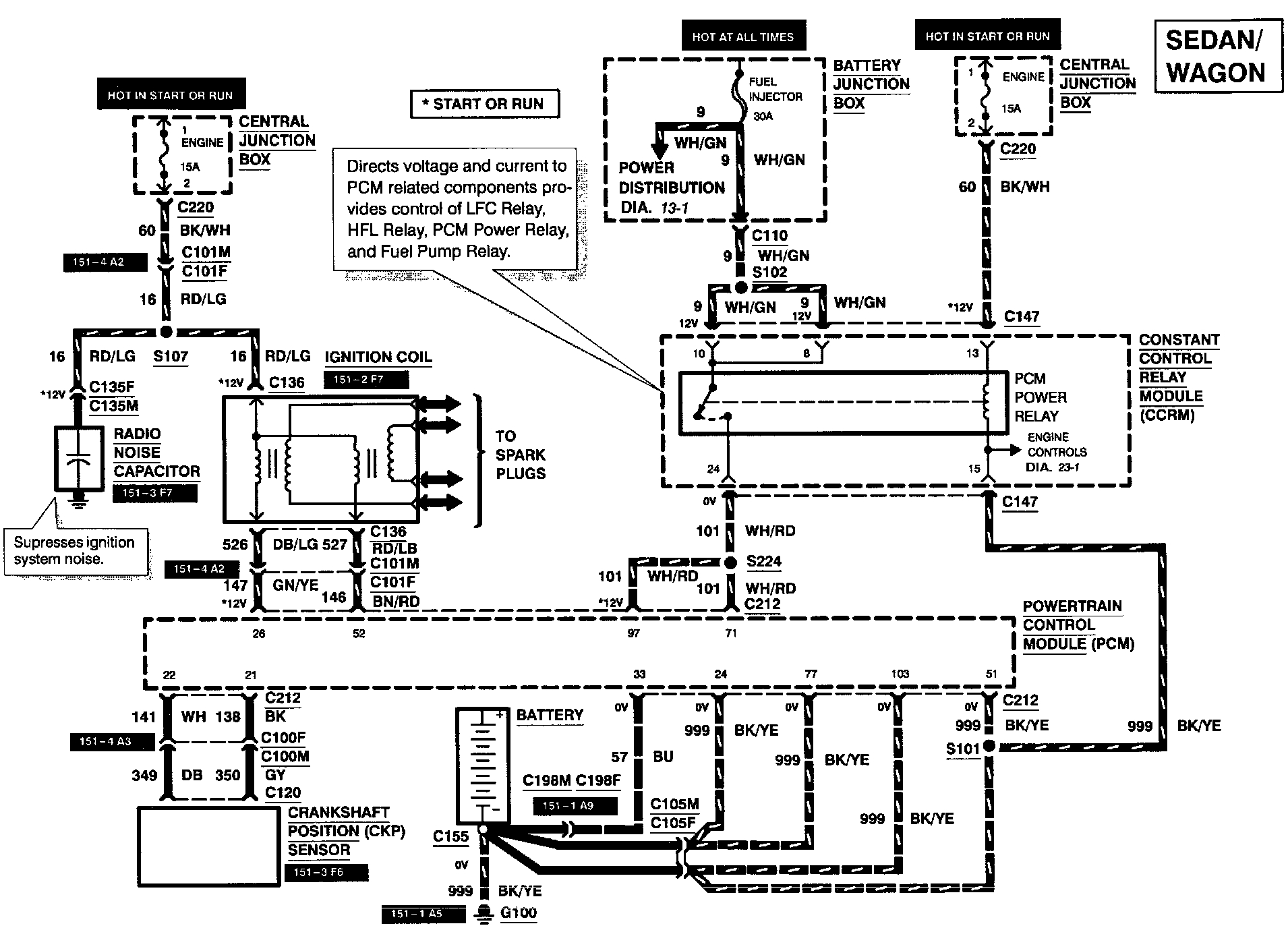

Diagram 21-1 Sedan/Wagon:
