Resonator: Service and Repair

REMOVAL
1. Remove the air cleaner housing.

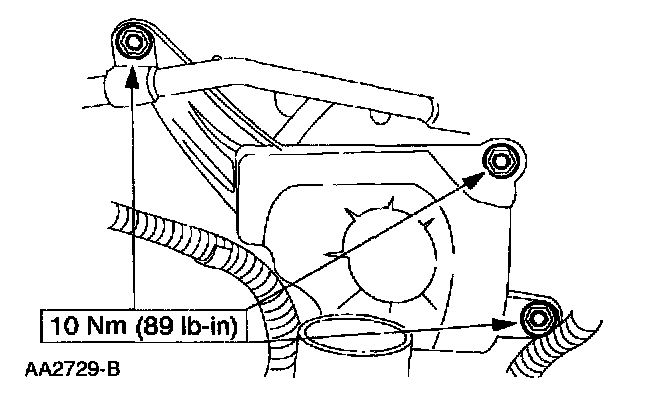

2. Remove the bolts and the air inlet tube grommet seal.

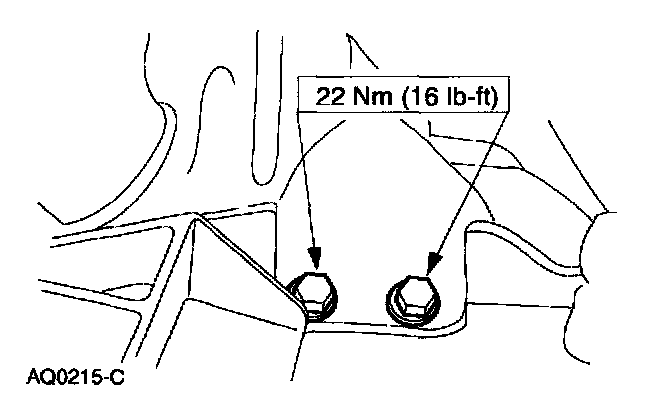

3. Remove the bolts and remove the intake air resonator.

INSTALLATION
1. To install, reverse the removal procedure.
