Service Port HVAC: Locations

The high-pressure service gauge port valve is located on the front condenser to evaporator tube.

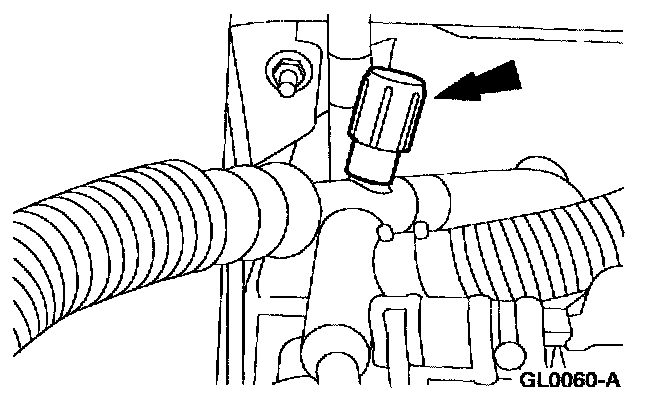

The low pressure service gauge port valve is located on the A/C manifold and tube.
