Air Register: Service and Repair
REMOVAL1. Remove the instrument panel finish panel.

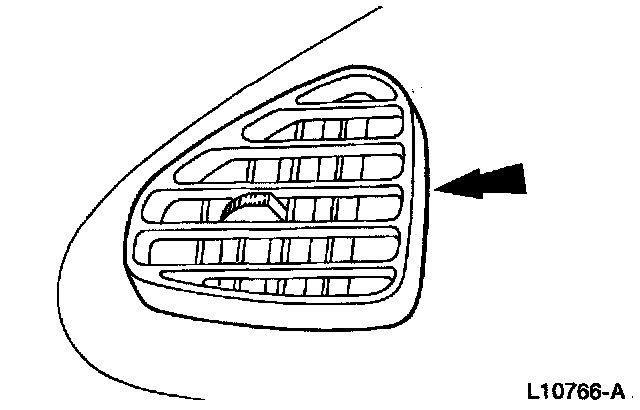

2. Push the LH A/C register outward to remove.

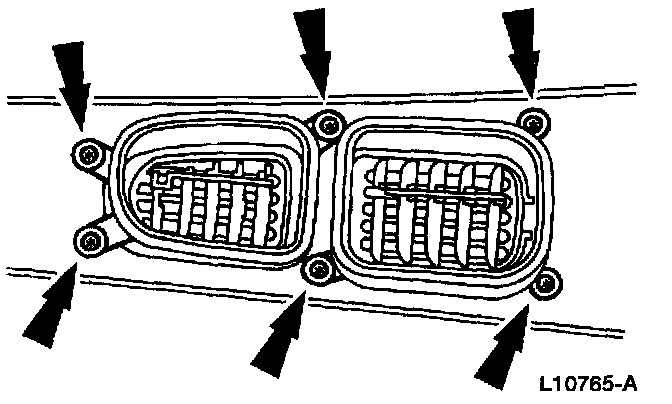

3. Remove the screws and remove the registers.
INSTALLATION
1. Follow the removal procedure in reverse order.
1. Remove the instrument panel finish panel.
2. Push the LH A/C register outward to remove.
3. Remove the screws and remove the registers.
INSTALLATION
1. Follow the removal procedure in reverse order.
