Front

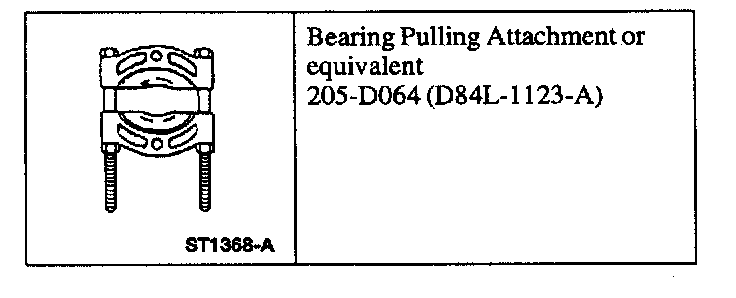

Special Tools:

Removal
1. Remove the front wheel knuckle.

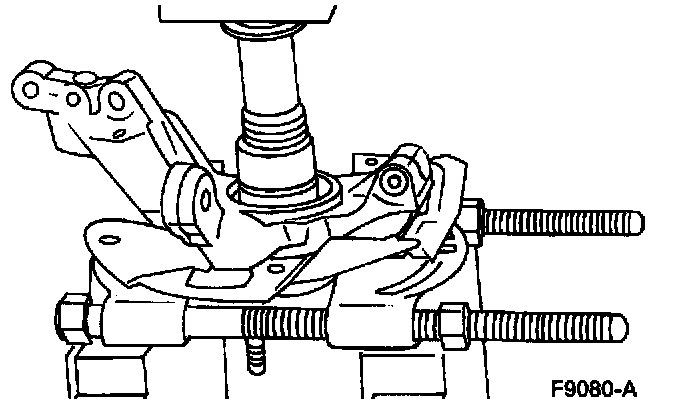

2. Use Bearing Pulling Attachment to press the wheel hub out of the front wheel knuckle.

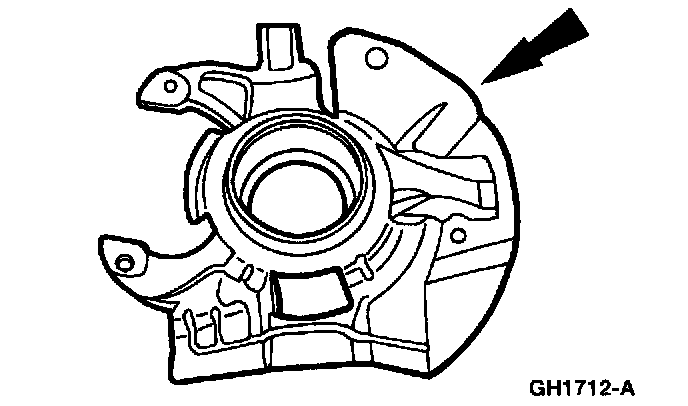

3. CAUTION: The front disc brake rotor shield must be replaced.

Use a chisel to remove the front disc brake rotor shield.


Installation
1. To install, reverse the removal procedure.
