Hydraulic Control Unit

Removal
1. Remove the battery tray.
2. Disconnect the two Hydraulic Control Unit (HCU) electrical connectors.





3. NOTE: Plug each port to prevent brake fluid from spilling.

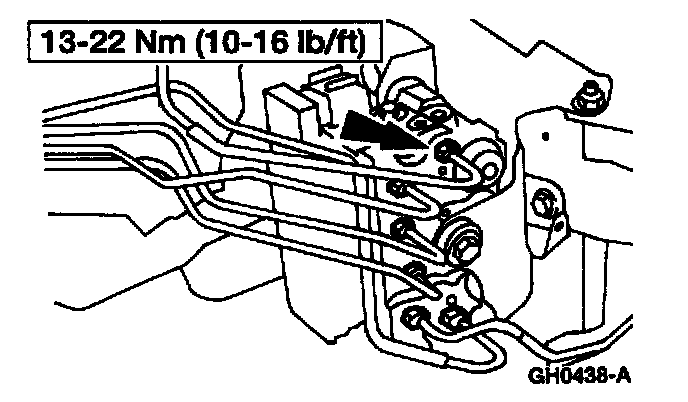

Disconnect the six hydraulic brake lines.





4. Remove the HCU.

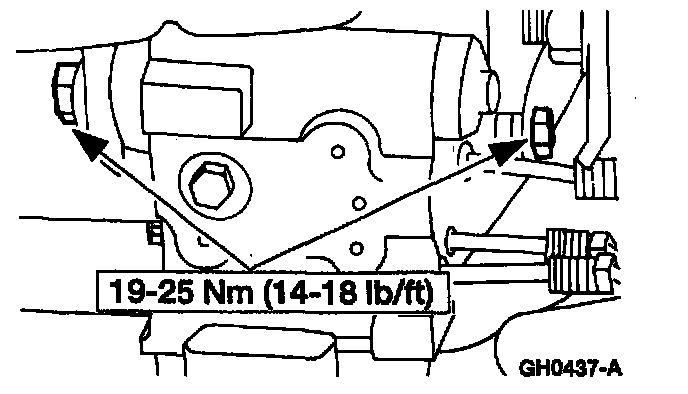

1 Remove the bolts.
2 Remove the HCU.


Installation








1. To install, reverse the removal procedure.
- Bleed the brake system.
