Without Rear Passenger A/C Registers

NOTE: The LH A/C registers are located in the instrument panel finish panels. The RH A/C registers are located below the passenger side air bag module in the instrument panel.

REMOVAL
1. Remove integrated control panel.







2. Remove four screws, disengage two snap-in tabs and remove center instrument panel finish panel from instrument panel.

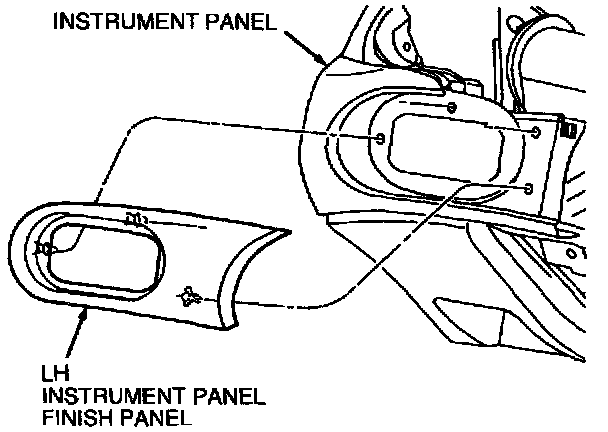

3. Disengage three snap-in tabs and remove LH instrument panel finish panel from instrument panel.

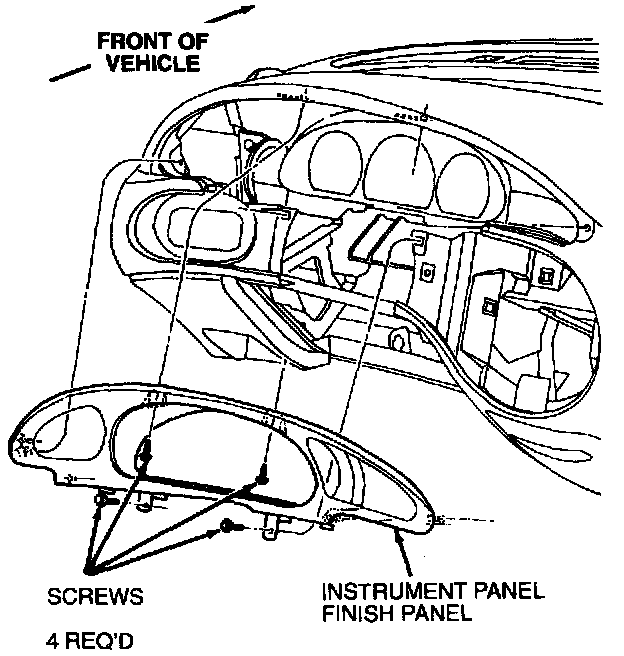

4. Remove four screws, disengage four snap-in tabs and remove cluster opening instrument panel finish panel.

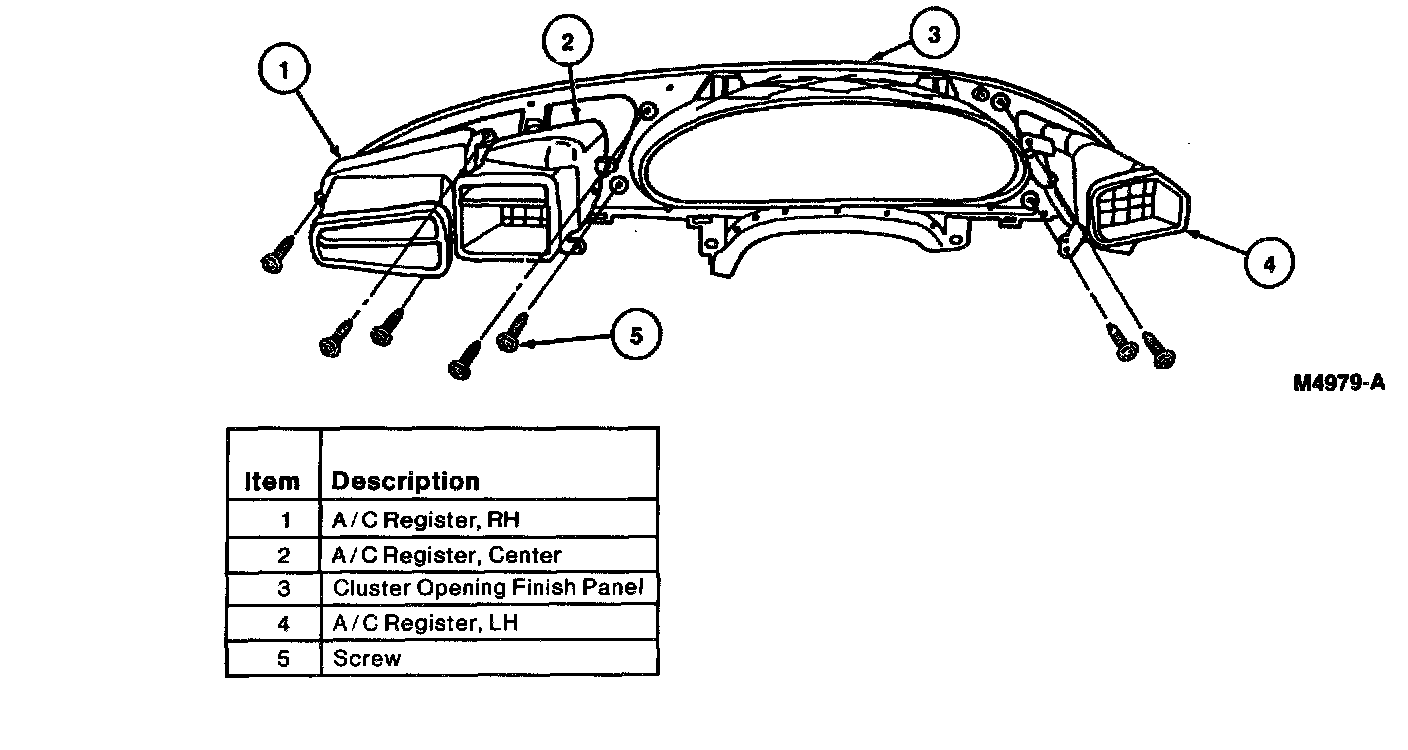

5. Remove retaining screws and A/C register from rear of cluster opening instrument panel finish panel.

INSTALLATION







1. Follow removal procedure in reverse order.
