Home >> Mercury >> 1999 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Register >> Service and Repair >> Register >> With Rear Passenger A/C Registers

With Rear Passenger A/C Registers

REMOVAL

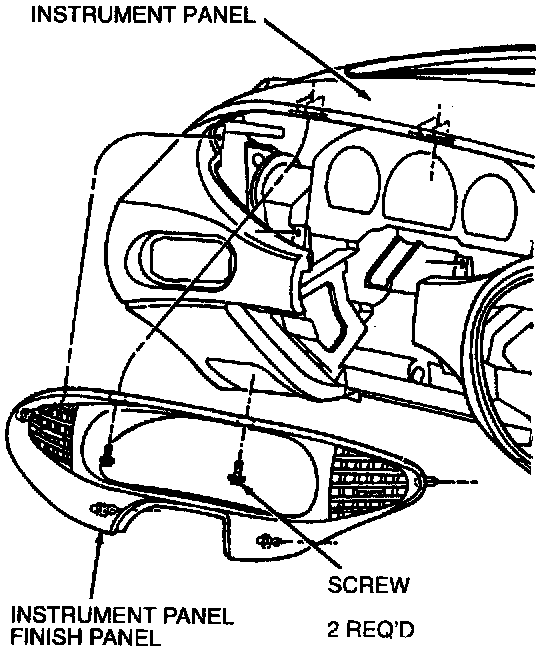

1. Remove two screws, disengage four snap-in tabs and remove cluster opening instrument panel finish panel.

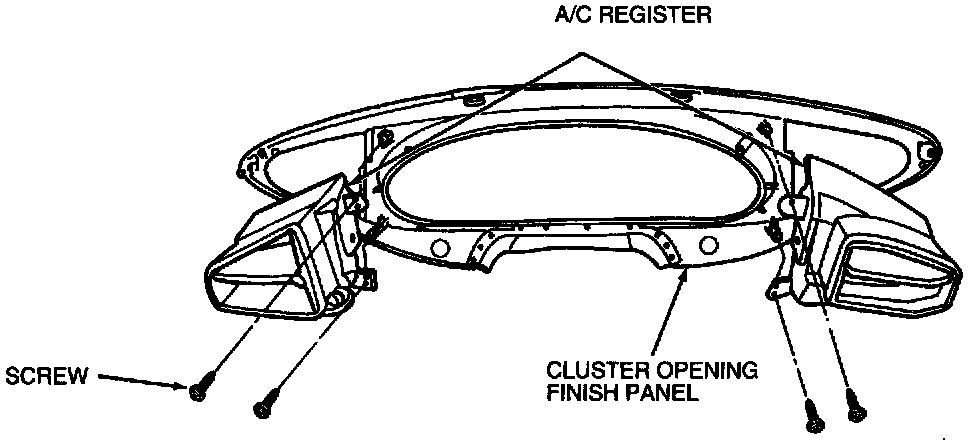

2. Remove retaining screws and A/C register from rear of cluster opening instrument panel finish panel.

INSTALLATION







1. Follow removal procedure in reverse order.
