Right

NOTE:
- The LH A/C registers are located in the instrument panel finish panels. The RH A/C registers are located below the passenger side air bag module in the instrument panel.
- RH A/C register barrels can be replaced without removing the A/C register.

REMOVAL
1. Remove RH A/C evaporator register duct.

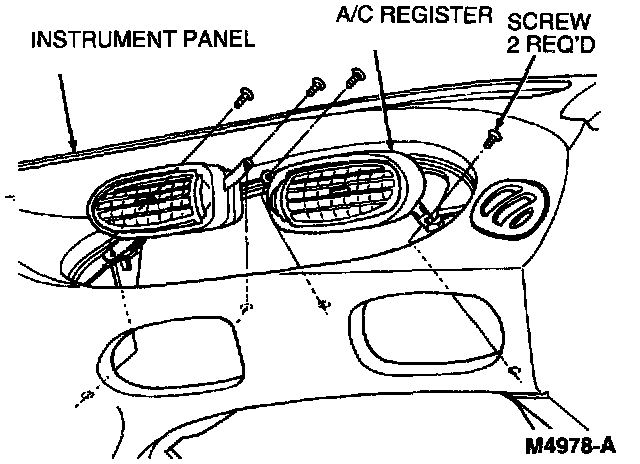

2. Remove two screws and A/C register from rear of instrument panel.

INSTALLATION
1. Follow removal procedure in reverse order.
